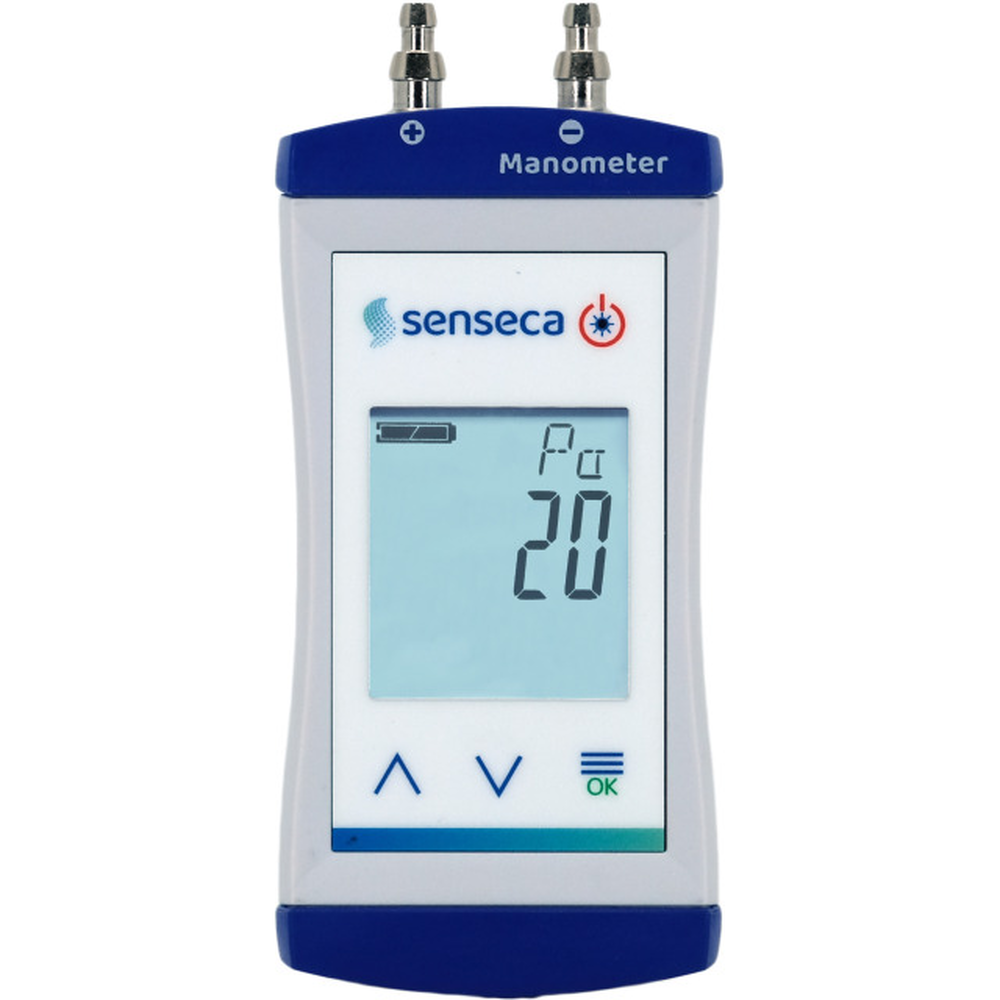

ECO 210-3 - Fine manometer (formerly G 1107)

The primary focus in the development of the ECO line series was placed on the essential functions of the measurement technology. The heart of the instrument – the sensor – is a high-class component – which excels in this instrument class.

The high reliability, speed and precision, packed in a compact and water protected housing makes the instruments an ideal partner of industry and in the craft sector.
ECO 210-3
Fine pressure manometer for application in Heating / Ventilation / Air-conditioning (HVAC)

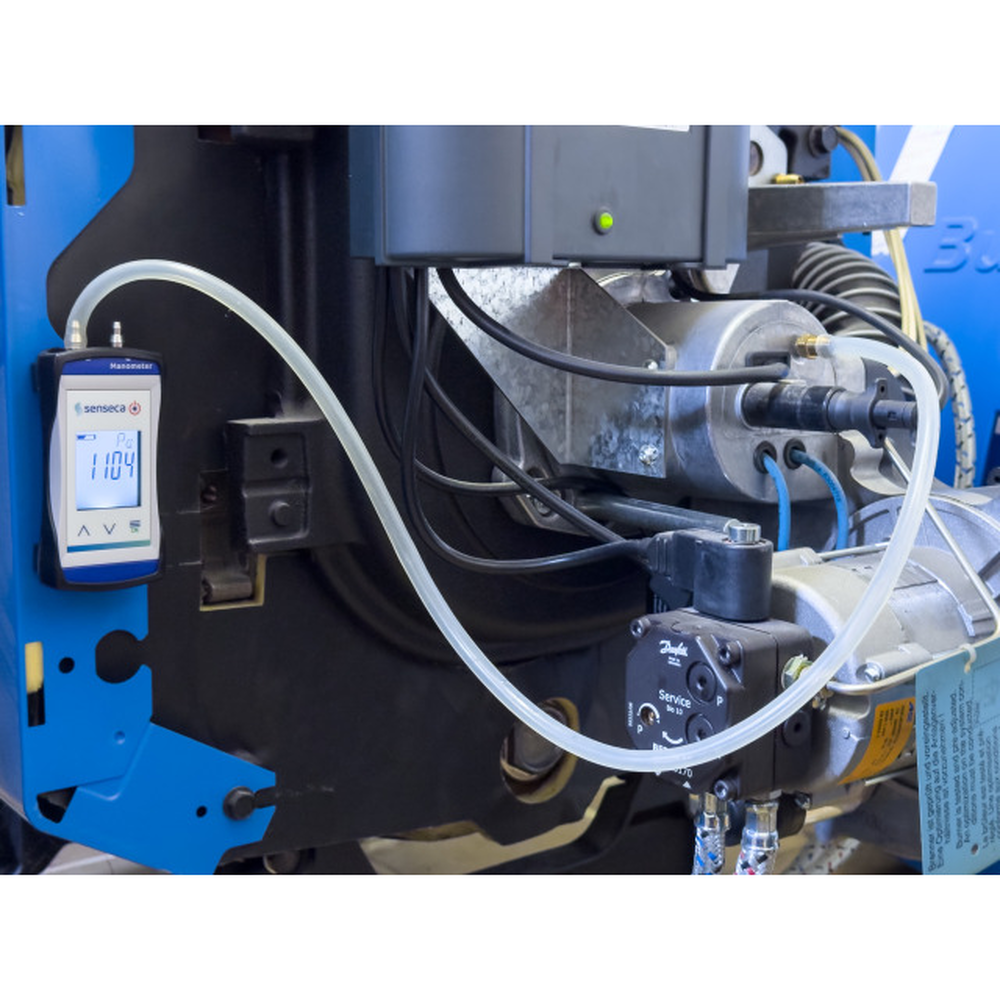

The measurement range up to 200 hPa (mbar) / 20 kPa and the high resolution 1 Pa (0.1 Pascal in the optimized fine pressure mode) covers the main applications for gas pressure 150 hPa (mbar) and burner adjustments with a single instrument. The high precision simplifies e.g. adjustments of dynamic pressure or draft measurements. The measurement is independent of instruments orientation – better than many, even much more expensive, competitors.

Measurement rate:

Slow: 2.5 measurements per second
Fast: 25 measurements per secon

Power supply:

2 x AA-Alkaline batteries (scope of delivery)

Power consumption:

<1 mA (without backlight, SLO), with backlight: ca 3 mA

Weight:

150 g incl. battery

Auto power off:

configurable by the user, when activated, instrument switches off automattically

Measuring range:

choice from -2000 … +2000 Pa to -200.0 … +200.0 hPa (mbar)

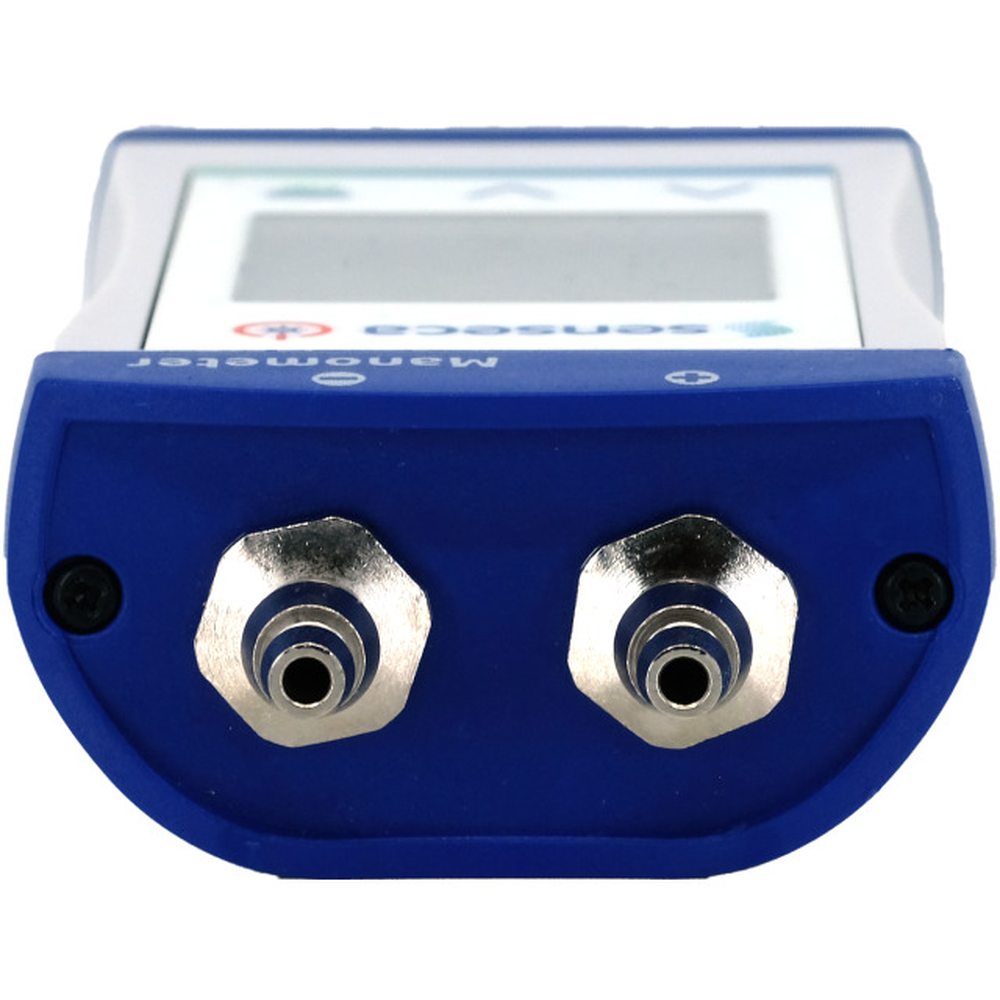

Connections:

2 tube connections, interchangeable with G1/8 universal ports

Operating conditions:

-20 to +50 °C; 0 to 95 % (r.h. temporarily 100 % r.h.)

Storage temperature:

-20 ... +70 °C (without batteries)

Display:

3-line with battery status indicator, Backlight, protected by shatterproof screen, overhead display at the push of a button

Dimensions:

87 x 54 x 28 mm, incl connectors: ca 122 x54x28 mm

Additional functions:

NULL / Tare function
FINE: With 1 Pa resolution
AVR: Averaging over 2 s / 5 s / 10 s

Standard functions:

Min/Max/Hold, Auto-Power-Off-function / if activated, the product switches off automatically

Automatic Power-Off:

configurable by the user

Battery indicator:

4-stage charge status indicator, note for low charge level: BAT LO

Battery life:

ca. 3000 h typ. continuous operation (without backlight, SLO)

Housing:

break-proof ABS, polyester (front panel)

Measuring:

Differential pressure

Display units:

Pa, hPa, mbar, PSI, mmHg (Torr), FINE: Pa

Precision typ. @ 25 °C:

± 0.1 % FSS

Precision max. (-20 ... 50 °C):

± 1 % FSS

Max. overload:

± 1700 hPa

Adjustment:

Zero point and slope

Measuring frequency:

Slow: 2,5 measurements per second
Fast: 25 measurements per second

Pressure connection:

2 tube connections, interchangeable with G1/8 universal ports

Range and resolution:

-200.0...+200.0 hPa (mbar)
-2.900 ... +2.900 PSI
-150.0 ... +150.0 mmHg (Torr),
FINE: -2000 ... +2000 Pa
