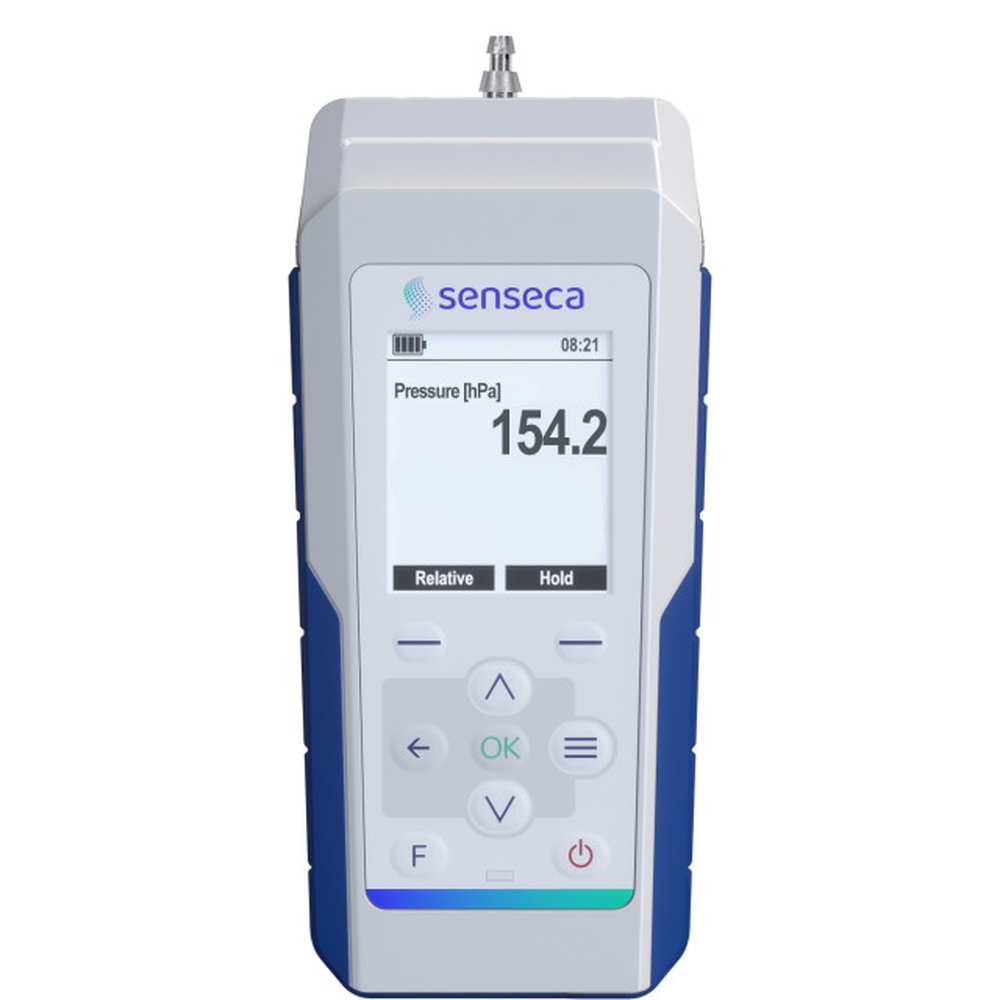

PRO 24x - Absolute handheld pressure gauge - vacuum gauge, integr. sensor, graphic display

Absolute pressure gauge/vacuum gauge, integr. sensor, graphic display

Protection class:

IP67 (except pressure port)

Storage capacity:

only PRO 245-x: Up to 1 million data sets, file system based
Each data set includes date/timestamp and measurement.
Data are stored in CVS files.

Logging type:

only PRO 245-x: Automatic with manual start/stop

Accuracy:

± 2 hPa (@ T: 5 .. 30 °C) typ.
±1.25 %FSS max.

Measurement rate:

4 meas/s

Temperature drift (ref. 25 °C):

±0.002 %FSS/K typ.

Long-term drift:

±1 %FSS/year max.

Compatible media:

Air and non-aggressive dry gases

Logging interval:

only PRO 245-x: 1, 2, 5, 10, 15, 30 s / 1, 2, 5, 10, 15, 30 min / 1 hour

Clock:

User-adjustable date and RTC function (max. drift 1 min/month @ 25 °C)

User interface:

Multilingual (de, en, it, fr, es)

PC connection:

USB C

Power supply:

4 x AA batteries (included in the scope of delivery)
External 5 V DC via USB C (power adapter or PC USB port)

Weight:

330 g incl. battery

Auto power off:

user configurable
Automatically disabled if external power is connected

Housing material:

Shock and impact proof, ABS, TPE (side protection), Polyester (front panel)

Measuring range:

0.0 ... 1700.0 hPa (mbar) abs.
0.00 ... 25.00 PSI abs.
0.0 ... 1300.0 mmHg (Torr) abs.

Operating conditions:

-5 ... +50 °C; 0 ... 85 % RH (non-condensing)

Storage temperature:

-25 … 65 °C (without batteries)

Display:

140 x 160 dot-matrix LCD with backlight / visible area 42 x 50 mm, display of large-digit single values, statistical info (min/avg/max), chart view

Dimensions:

178 x 78 x 38 mm

Standard functions:

Acoustic/optic alarm, automatic switch-off freely configurable by the user (automatically deactivated if external power supply is connected)

Accuracy typ.:

± 2 hPa (@ T: 5 .. 30 °C)

Battery life:

> 250 h typ. Continuous operation

Current consumption:

10 mA typ

Data logger with read out via USB:

only PRO 245-x

Extras:

Foldable stand and magnet for flexible operation

Optional special functions:

Favorites menu, multilingual

Display units:

hPa, kPa, bar, mbar, Torr

Channels:

1 absolute
1 x universal barbed pressure ports (+/-) for 4 and 6 mm inner diameter hose
Interchangeable G 1/8 thread connections
