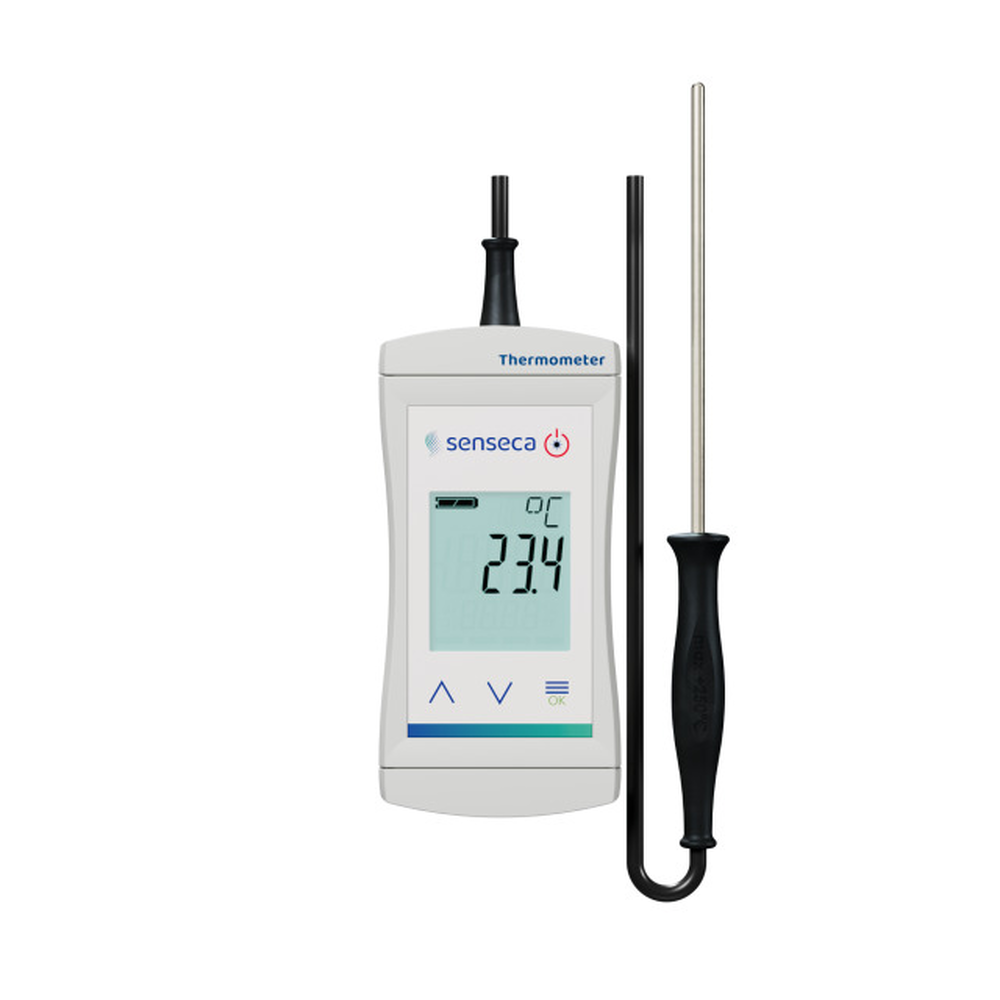

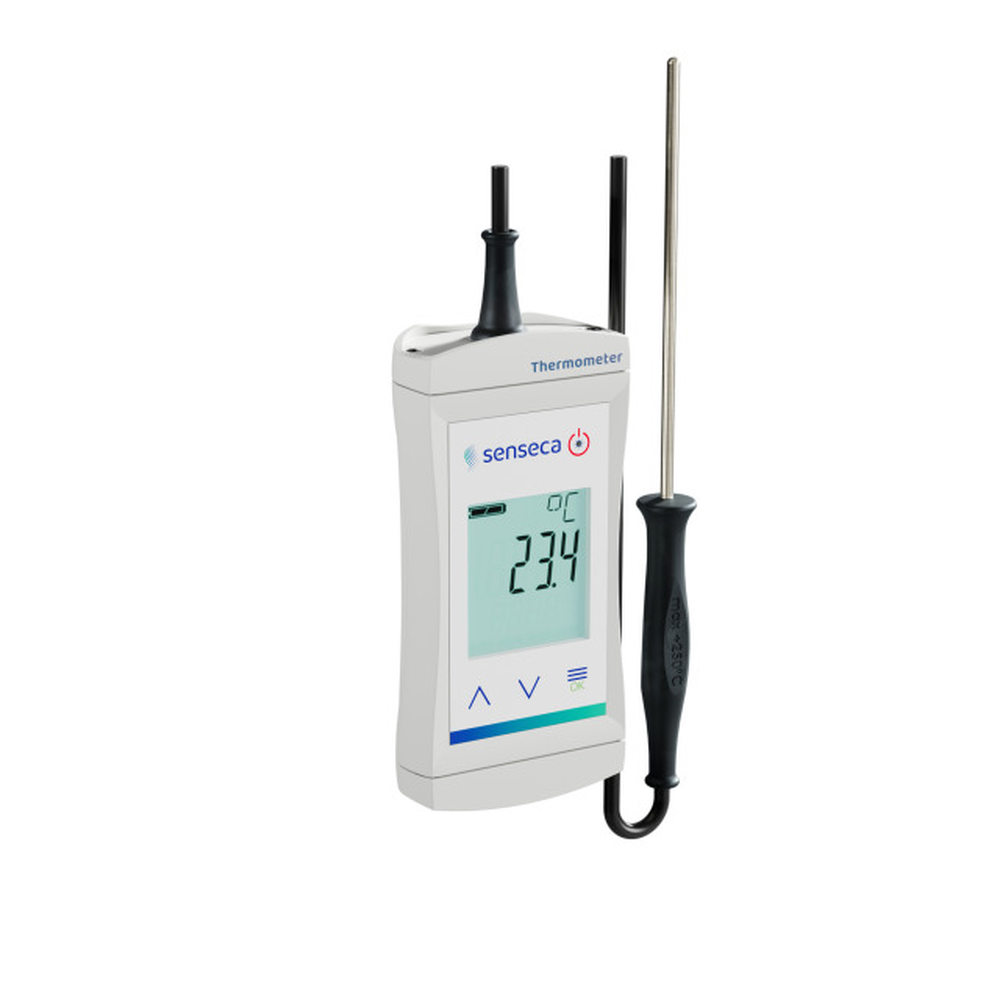

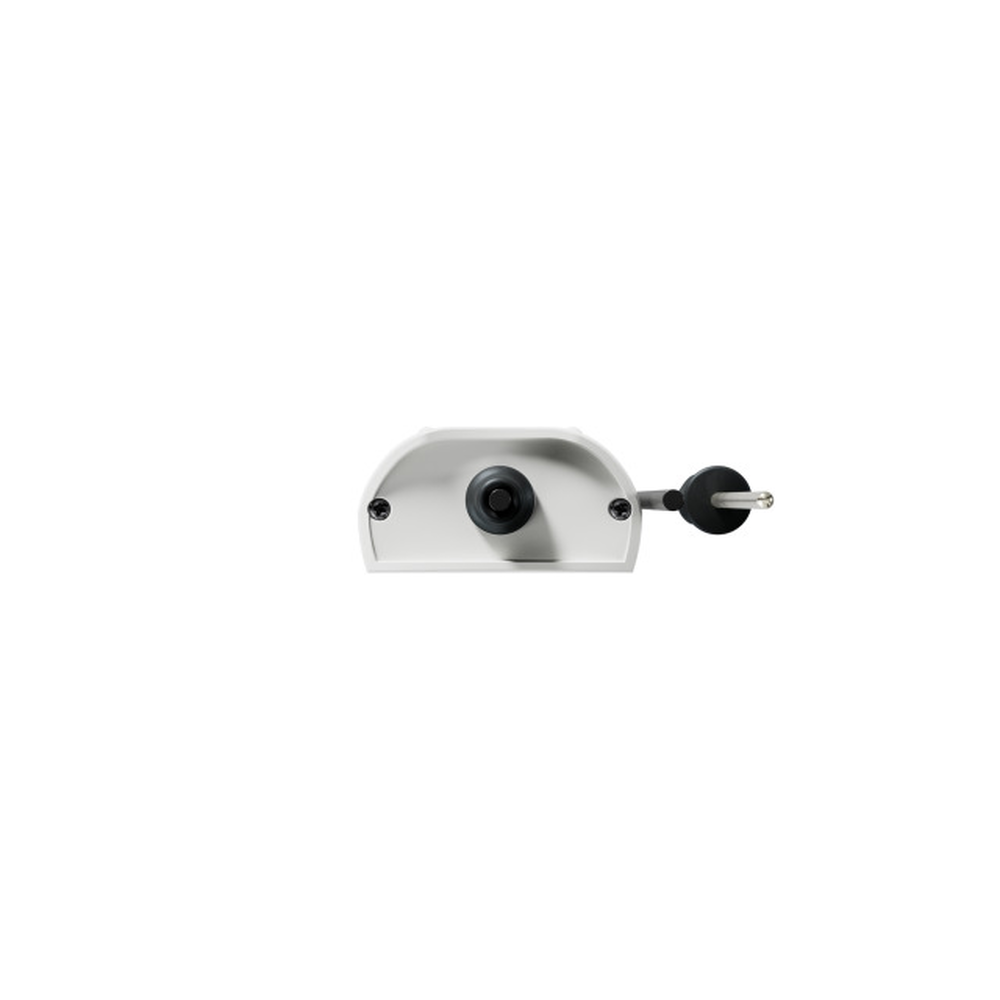

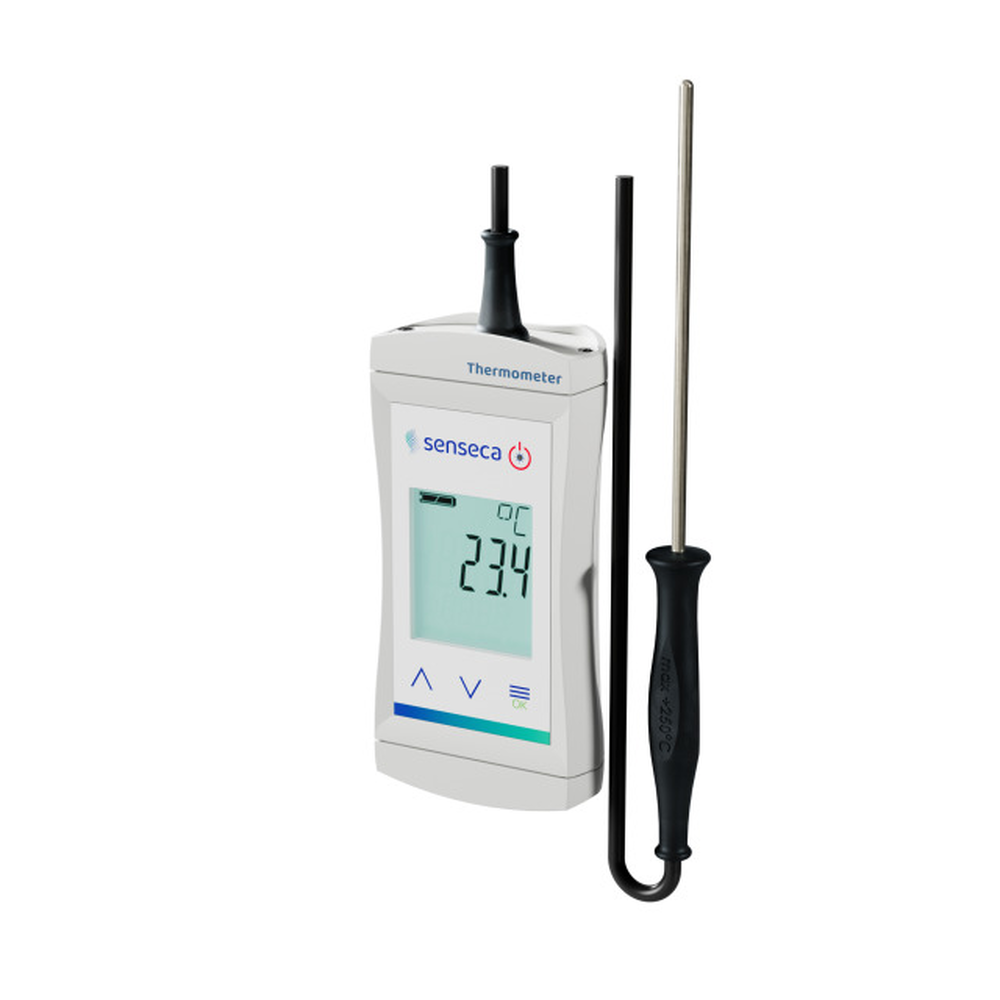

ECO 121-H - Waterproof HACCP alarm thermometer with sensor

Producer

The primary focus in the development of the ECO-line was place on the essential functions of the measurement technology.
Pure measurement with a focus on precision, speed and reliability packaged in a compact housing distinguish an impressive price/performance ratio.
Equipped with hygienically easy-to-clean housing and auto hold / timer function optimized for use in hygiene-critical applications (food, laboratory, pharmaceuticals) or for monitoring in drinking water systems, for example to prevent legionella.
The insertion probe variants ensure either low invasive or robust core temperature measurements.
The handheld measuring devices also impress with their ergonomic design, dust and water-protected design according to IP 65/67 and the illuminated display.
The compact thermometer is available with a practical BNC connection for interchangeable sensors or as a complete device including sensor with maximum overall precision.
The device redefines our entry-level measurement class – test protocol included.
The matching sensors can be used at temperatures of up to 250 °C (incl. handle and cable) and are distinguished by their compact design and small tube diameter.
Integrated: High-quality Pt1000 sensors.
Display
Thanks to the backlight, the three-line LCD display offers ergonomic wide-angle visibility - by day and by night.
The HOLD function enables the display values to be frozen.
Power supply
2 powerful AA batteries, the energy-saving design and the configurable automatic switch-off function ensure long operation.
Configurable LCD backlight for further energy saving options.

Protection class:
IP65 / 67
Power supply:
2 x AA Alkaline batteries (included)
Power consumption:
ca. 0.4 mA, ca. 2 mA with backlight
Weight:
130 g (without probe)
Measuring range:
Temperature -70.0 ... +250.0 °C (-94.0..+482.0 °F)
Option -MB4: -200.0 … +250.0 °C
Connections:
Fixed Pt1000 probe
Operating conditions:
-20 ... +50 °C; 0 ... 95 % r.h. (non-condensing)
Storage temperature:
-20 ... +70 °C (without batteries)
Display:
3-line with battery status indicator, Backlight, protected by shatterproof screen, overhead display at keypress
Dimensions:
108 x 54 x 28 mm (H x W x D)
Additional functions:
Zero and slope correction
Min/Max-Alarm: Display indication, blinking, buzzer
Standard functions:
Min/Max/Hold, Auto-Hold
Auto-Power-Off-function
Accuracy (nominal temperature):
-20 ... +100 °C: ±0.1 K ±1 digit -70 ... +250 °C: ±0.2 % of value ±2 digit
Automatic Power-Off:
configurable by the user
Battery life:
ca. 5000 h typ. continuous operation
Housing:
Impact resistant ABS, screw locked battery compartment
Operating conditions instrument:
-20 to 50 °C; 0 to 95 % r.h. (non-condensing)
Auto-Hold stability criteria:
15s < ±0.1K
Cable length:
1 m
Measuring cycle:
ca. 2 measurements / s
Probe:
Immersion probe AX 121-D3-L01S 150 mm, Ø3 mm, large handle up to 120°C, silicon cable /
Extra thin and fast insertion probe GF1T-E1.5 100 mm, Ø1.5 mm, compact silicon handle short time 250°C, permanent 230°C, silicon cable /
Robust insertion probe A


Enquire for more information
please weait… Your data is being loaded...

Article no. Order Code Measuring range Probe (permanently connected) Cable Scope of delivery minimal quantity Product comparison
488157 ECO121-H-D ECO121-H-D -70 ... +250 °C Immersion probe AX 121-D3-L01S 150 mm, Ø3 mm, large handle up to 120°C, silicon cable 1 m silicone cable, -50 ... +230 °C permanent, short-time +250 °C Device in carton box, testprotocol, batteries, manual 1 Delivery time
488158 ECO121-H-I3 ECO121-H-I3 -70 ... +250 °C Insertion probe AX 121-I3-L01S 100 mm, Ø3 mm, large handle up to 120°C, silicon cable 1 m silicone cable, -50 ... +230 °C permanent, short-time +250 °C Device in carton box, testprotocol, batteries, manual 1 Delivery time
488159 ECO121-H-K ECO121-H-K -70 ... +250 °C PTFE insertion probe GES21 100 mm, Ø 3 mm, large PTFE handle, PTFE cable, each max 250 °C 1 m PTFE cable, -200...250 °C Device in carton box, testprotocol, batteries, manual 1 Delivery time
488160 ECO121-H-I1.5 ECO121-H-I1.5 -70 ... +250 °C Fast insertion probe GF1T-E1.5 100 mm, Ø1.5 mm, compact silicon handle shorttime 250°C, permanent 230°C, silicon cable 1 m silicone cable, -50 ... +230 °C permanent, short-time +250 °C Device in carton box, testprotocol, batteries, manual 1 Delivery time
