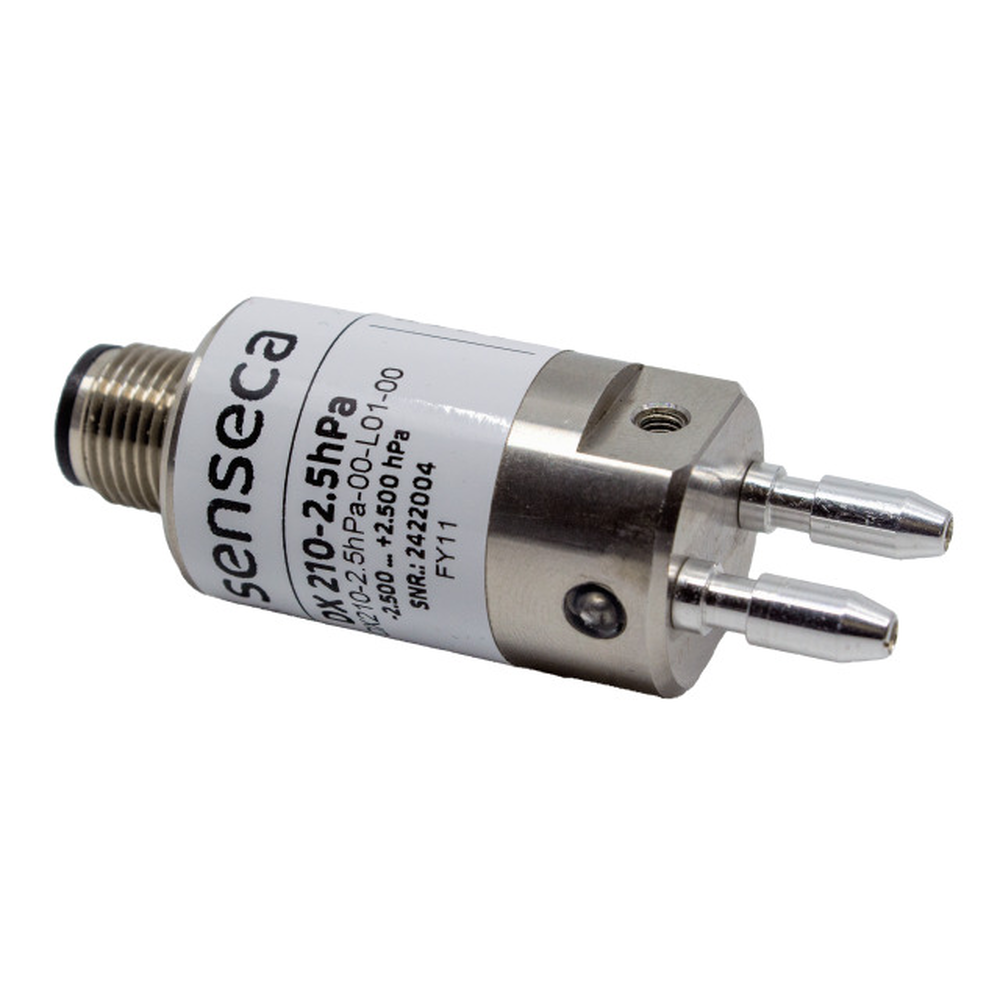

DX 210 and DX 240 are series of miniature digital absolute and differential pressure probes for the PRO D01 / PRO D05 and other handheld meters with DX input.
The robust stainless steel connection pieces are primarily designed for direct connection to standard hoses with an outer diameter of 6 mm.
The sensors are used for filter and pitot pressure measurements, velocity measurements with Prandtl pitot tubes, low-pressure pneumatics, and much more.

Different ranges available:

• DX 210-2.5hPa-00-L1-00: ±2.5 hPa differential
• DX 210-20hPa-00-L1-00: ±20 hPa differential
• DX 210-500hPa-00-L1-00: ±500 hPa differential
• DX 210-200kPa-00-L1-00: ±200 kPa differential
• DX 210-700kPa-00-L1-00: ±700 kPa differential
• DX 240-200kPa-00-L1-00: 0…200 kPa absolute

The measurement is temperature compensated for enhanced accuracy.

The probes are supplied factory-calibrated, and they are ready to use. The probes can be optionally supplied with a DAkkS/ACCREDIA calibration certificate.

The calibration data are stored in the probe, allowing for interchangeability without the need for recalibration.

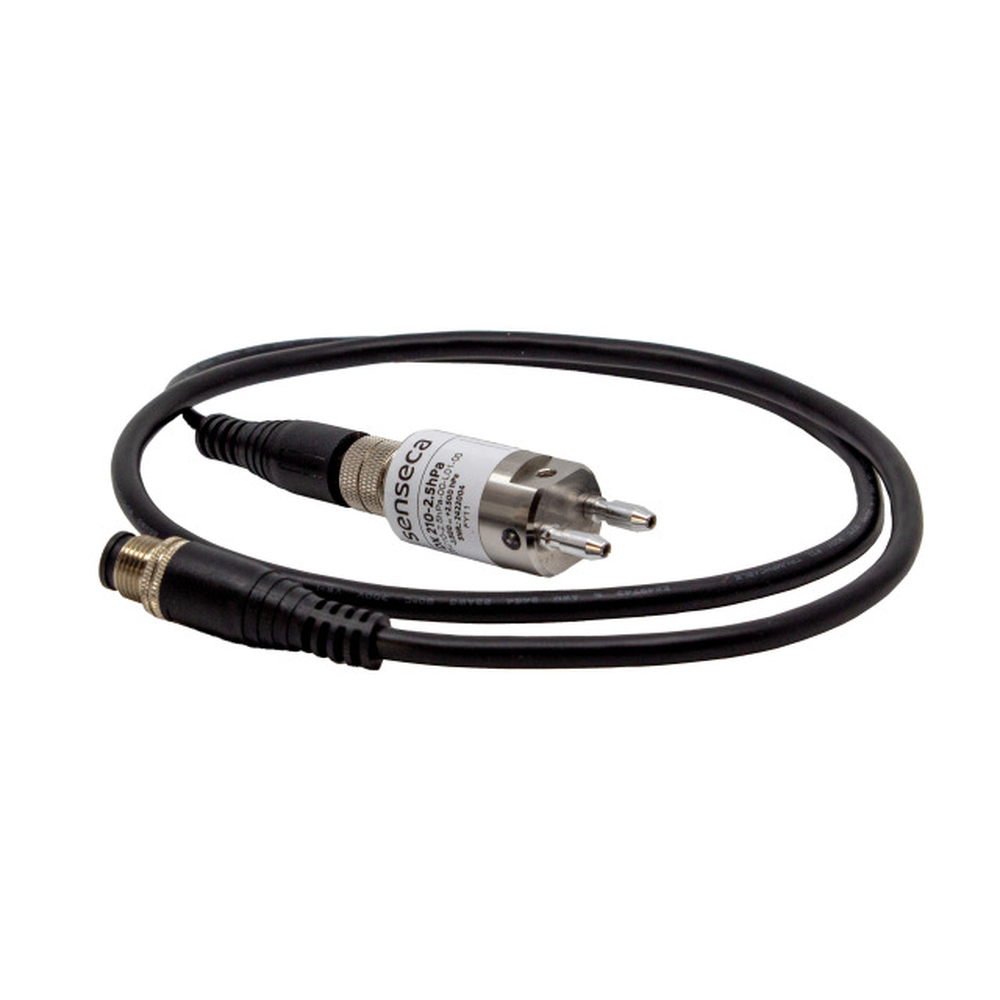

Equipped with 4-pin M12 connector.

Output:

DX-Sensor-Interface, interchangeable without loss of accuracy

Connection:

M12A connector, 4-pin

Material:

Stainless steel

Sensor:

MEMS pressure sensor

Compensated temperature:

0…+50 °C

Operating conditions:

-25…+85 °C / 0…95% RH non-condensing

Storage temperature:

-40 ... +125 °C

Overpressure:

10 x FS

Burst pressure:

20 x FS

Applications:

Only air and non-aggressive dry gases

Measurement rate:

normal: 1 /s, fast: Internally 1000 /s
