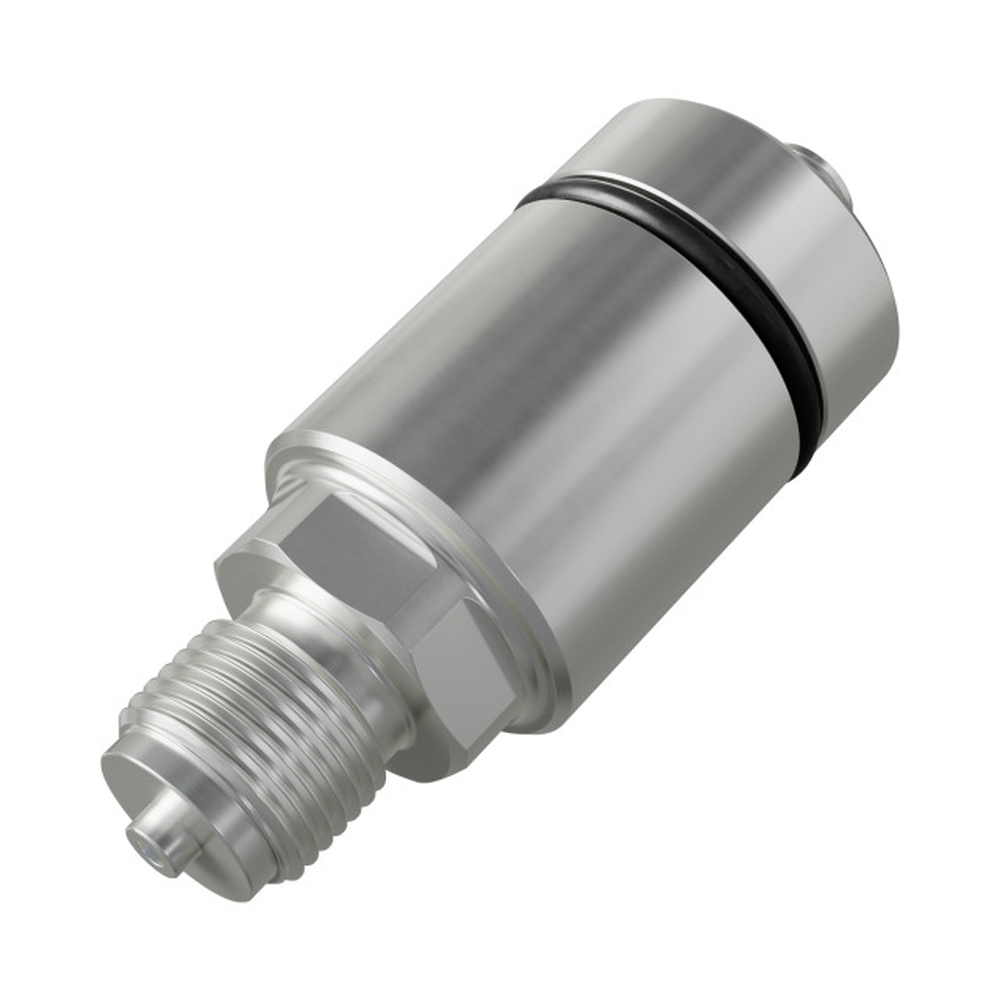

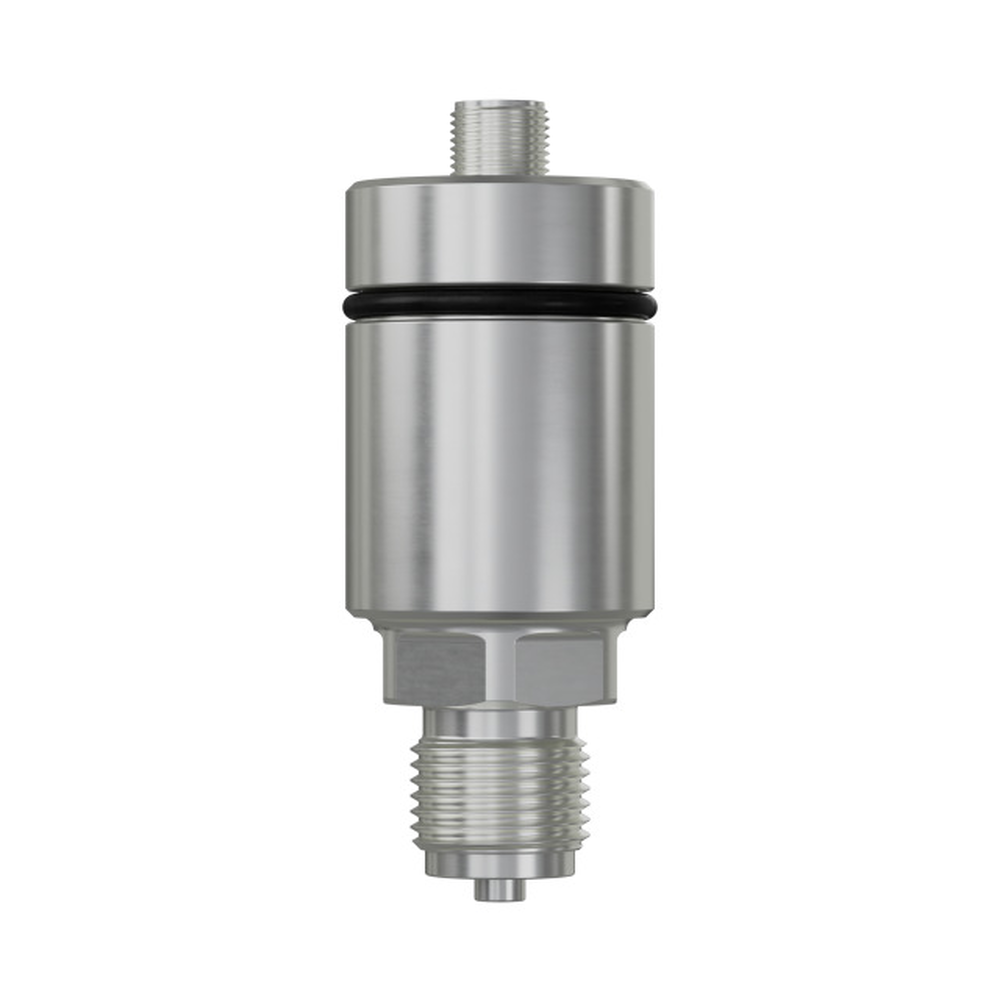

DX225 - Digital relative pressure sensor with pressure gauge connection thread G½B (e.g. for PRO D0x)

Producer

DX 225 and DX 245 are series of high-class robust and very accurate reference sensors for operation with PRO D01/D05/925/595 handheld meters.
Different ranges available as standard:

relative 489188 DX225-M1/3bar-00 -1 … 3 bar
486801 DX225-1bar-00 0 … 1 bar
486812 DX225-4bar-00 0 … 4 bar
486809 DX225-10bar-00 0 … 10 bar
486810 DX225-100bar-00 0 … 100 bar

489181 DX225-600bar-00 0 … 600 bar

absolute/vacuum 486802 DX245-1bar-00 0 … 1 bar
486811 DX245-2.5bar-00 0 … 2.5 bar
489178 DX245-4bar-00 0 … 4 bar
489179 DX245-6bar-00 0 … 6 bar
486813 DX245-10bar-00 0 … 10 bar
489180 DX245-25bar-00 0 … 25 bar

many other ranges can be delivered on request!

The measurement is temperature compensated over a wide range for enhanced accuracy.
The probes are supplied factory-calibrated, and they are ready to use.
They can be optionally supplied with an ISO 9001 factory calibration or DIN EN ISO/IEC 17025 DAkkS/ACCREDIA calibration certificate.
The calibration data are stored in the probe, allowing for interchangeability without the need for recalibration.

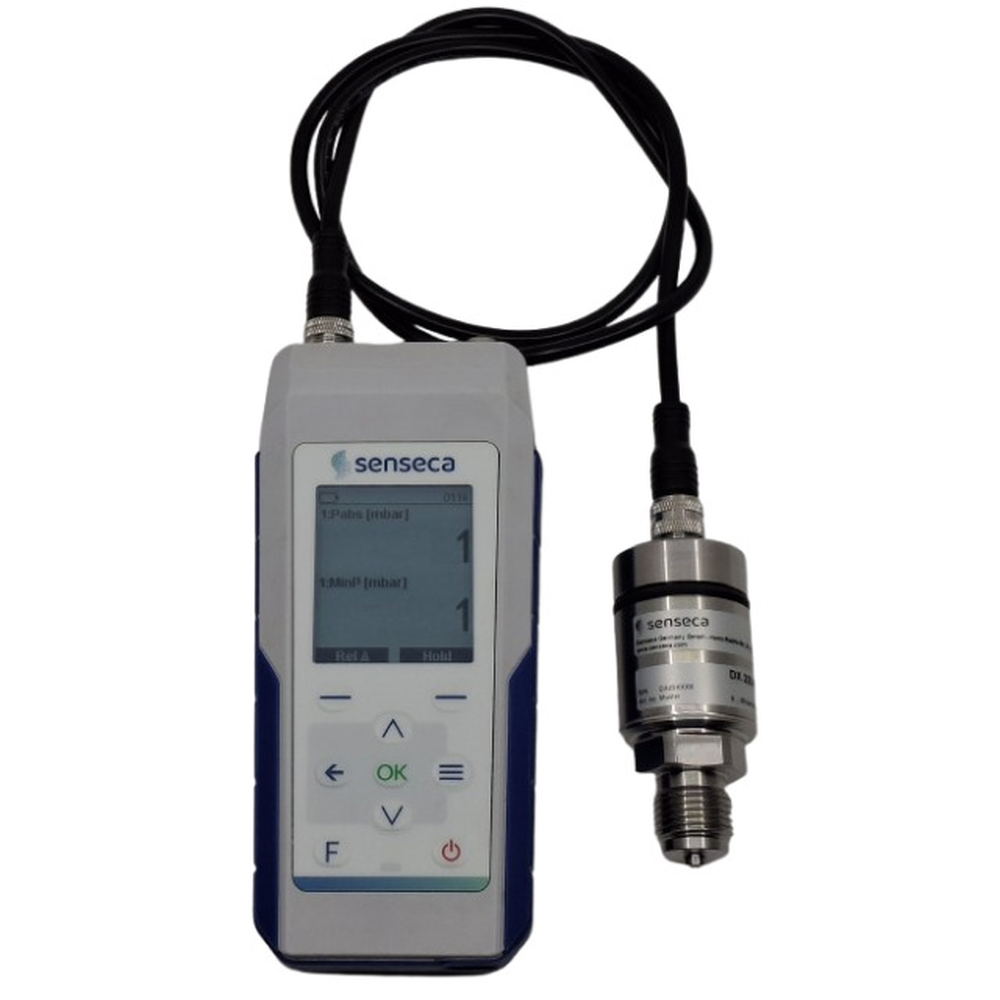

Equipped with 5-pin M12 connector “DX-Sensor standard”, connectable to PRO-D0x and PRO 925/595 multifunctional meters.

Protection class:
IP67
Output:
DX-Sensor-Interface, interchangeable without loss of accuracy
Weight:
280 g
Material:
Stainless steel
Sensor:
<=40 bar: piezoresistive; >40 bar: thin film cell
Measuring range:
1 … 1000 bar rel.
Resolution:
Depending on sensor model
Accuracy:
±0.1 %FS
Compensated temperature:
-0 ... +60 °C
Operating conditions:
-20…+60 °C / 0…95% RH non-condensing
Storage temperature:
-20…+80 °C
Overpressure:
< 25 bar: 3-fold; > 25 ... ≤ 600 bar: 2-fold
Measurement rate:
normal: 1 /s, fast: Internally 50 /s
Housing material:
Stainless steel


Enquire for more information
please weait… Your data is being loaded...

Article no. Order Code Measuring range Calibration Pressure connection Media Scope of delivery minimal quantity Product comparison
489424 DX 225-M1/3bar-00-L1 DX225-M1/3bar-00-L1 -1000 ... 3000 hPa rel. Factory adjustment with test protocol Gauge connection thread G½B All liquids and gases compatible with 316 CrNi steel Device in carton box, incl. 1 m connection cable CABLE-M12-L01, Quickstart and test protocol 1 Delivery time
489425 DX 225-1bar-00-L1 DX225-1bar-00-L1 0 ... 1000 hPa rel. Factory adjustment with test protocol Gauge connection thread G½B All liquids and gases compatible with 316 CrNi steel Device in carton box, incl. 1 m connection cable CABLE-M12-L01, Quickstart and test protocol 1 Delivery time
489426 DX 225-2.5bar-00-L1 DX225-2.5bar-00-L1 0 ... 2500 hPa rel. Factory adjustment with test protocol Gauge connection thread G½B All liquids and gases compatible with 316 CrNi steel Device in carton box, incl. 1 m connection cable CABLE-M12-L01, Quickstart and test protocol 1 Delivery time
489427 DX 225-4bar-00-L1 DX225-4bar-00-L1 0 ... 4000 hPa rel. Factory adjustment with test protocol Gauge connection thread G½B All liquids and gases compatible with 316 CrNi steel Device in carton box, incl. 1 m connection cable CABLE-M12-L01, Quickstart and test protocol 1 Delivery time
489428 DX 225-6bar-00-L1 DX225-6bar-00-L1 0 ... 6000 hPa rel. Factory adjustment with test protocol Gauge connection thread G½B All liquids and gases compatible with 316 CrNi steel Device in carton box, incl. 1 m connection cable CABLE-M12-L01, Quickstart and test protocol 1 Delivery time
489429 DX 225-10bar-00-L1 DX225-10bar-00-L1 0.00 ... 10.00 bar rel. Factory adjustment with test protocol Gauge connection thread G½B All liquids and gases compatible with 316 CrNi steel Device in carton box, incl. 1 m connection cable CABLE-M12-L01, Quickstart and test protocol 1 Delivery time
489430 DX 225-25bar-00-L1 DX225-25bar-00-L1 0.00 ... 25.00 bar rel. Factory adjustment with test protocol Gauge connection thread G½B All liquids and gases compatible with 316 CrNi steel Device in carton box, incl. 1 m connection cable CABLE-M12-L01, Quickstart and test protocol 1 Delivery time
489431 DX 225-40bar-00-L1 DX225-40bar-00-L1 0.00 ... 40.00 bar rel. Factory adjustment with test protocol Gauge connection thread G½B All liquids and gases compatible with 316 CrNi steel Device in carton box, incl. 1 m connection cable CABLE-M12-L01, Quickstart and test protocol 1 Delivery time
489432 DX 225-60bar-00-L1 DX225-60bar-00-L1 0.00 ... 60.00 bar rel. Factory adjustment with test protocol Gauge connection thread G½B All liquids and gases compatible with 316 CrNi steel Device in carton box, incl. 1 m connection cable CABLE-M12-L01, Quickstart and test protocol 1 Delivery time
489433 DX 225-100bar-00-L1 DX225-100bar-00-L1 0.0 ... 100.0 bar rel. Factory adjustment with test protocol Gauge connection thread G½B All liquids and gases compatible with 316 CrNi steel Device in carton box, incl. 1 m connection cable CABLE-M12-L01, Quickstart and test protocol 1 Delivery time
489434 DX 225-250bar-00-L1 DX225-250bar-00-L1 0.0 ... 250.0 bar rel. Factory adjustment with test protocol Gauge connection thread G½B All liquids and gases compatible with 316 CrNi steel Device in carton box, incl. 1 m connection cable CABLE-M12-L01, Quickstart and test protocol 1 Delivery time
489435 DX 225-400bar-00-L1 DX225-400bar-00-L1 0.0 ... 400.0 bar rel. Factory adjustment with test protocol Gauge connection thread G½B All liquids and gases compatible with 316 CrNi steel Device in carton box, incl. 1 m connection cable CABLE-M12-L01, Quickstart and test protocol 1 Delivery time
489436 DX 225-600bar-00-L1 DX225-600bar-00-L1 0.0 ... 600.0 bar rel. Factory adjustment with test protocol Gauge connection thread G½B All liquids and gases compatible with 316 CrNi steel Device in carton box, incl. 1 m connection cable CABLE-M12-L01, Quickstart and test protocol 1 Delivery time
489438 DX 225-1000bar-00-L1 DX225-1000bar-00-L1 0.0 ... 1000.0 bar rel. Factory adjustment with test protocol Gauge connection thread G½B All liquids and gases compatible with 316 CrNi steel Device in carton box, incl. 1 m connection cable CABLE-M12-L01, Quickstart and test protocol 1 Delivery time
