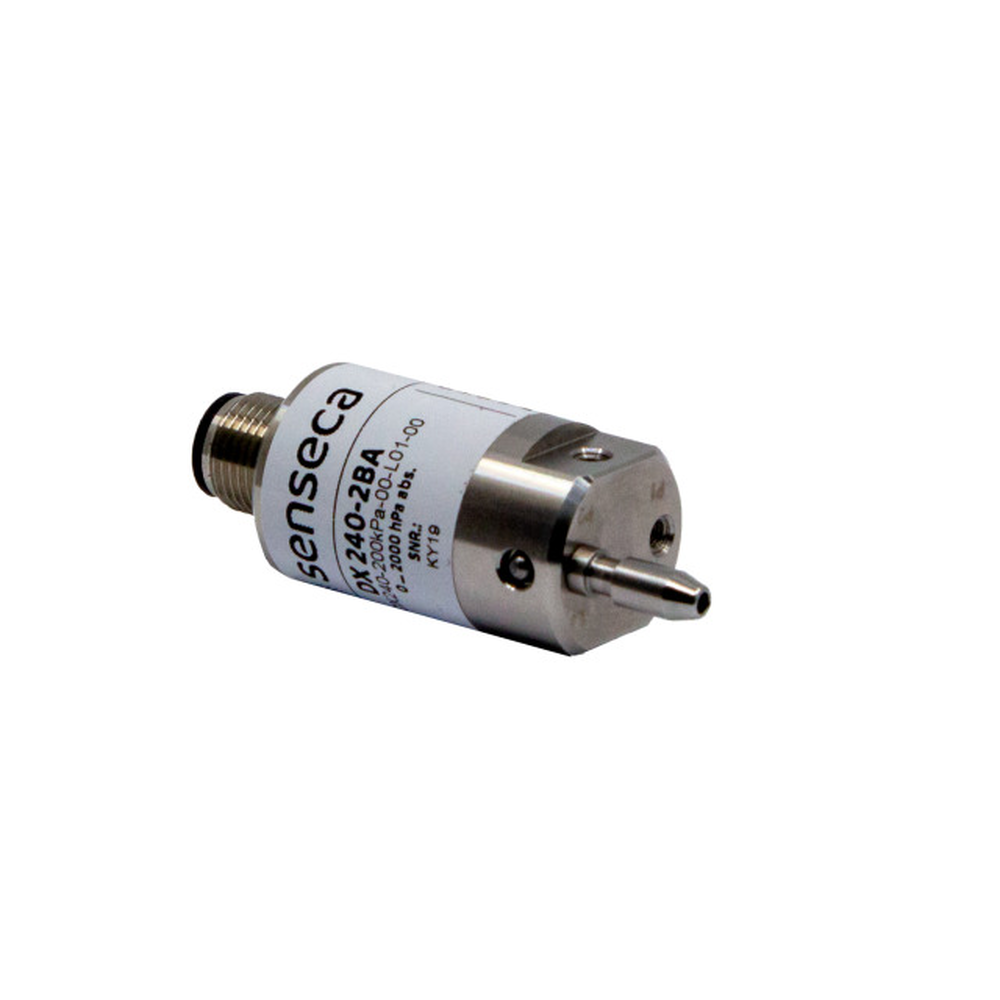

DX240 - Digital absolute pressure sensor with hose connection for gases (e.g. for PRO Dxx)
DX 210 and DX 240 are series of miniature digital absolute and differential pressure probes for the PRO D01 / PRO D05 handheld meters.
Different ranges available:
DX 210-2.5hPa-00-L1-00: ±2.5 hPa differential
DX 210-20hPa-00-L1-00: ±20 hPa differential
DX 210-500hPa-00-L1-00: ±500 hPa differential
DX 210-200kPa-00-L1-00: ±200 kPa differential
DX 210-700kPa-00-L1-00: ±700 kPa differential
DX 240-200kPa-00-L1-00: 0…200 kPa absolute
The measurement is temperature compensated for enhanced accuracy.
The probes are supplied factory-calibrated, and they are ready to use. The probes can be optionally supplied with a DAkkS/ACCREDIA calibration certificate.
The calibration data are stored in the probe, allowing for interchangeability without the need for recalibration.

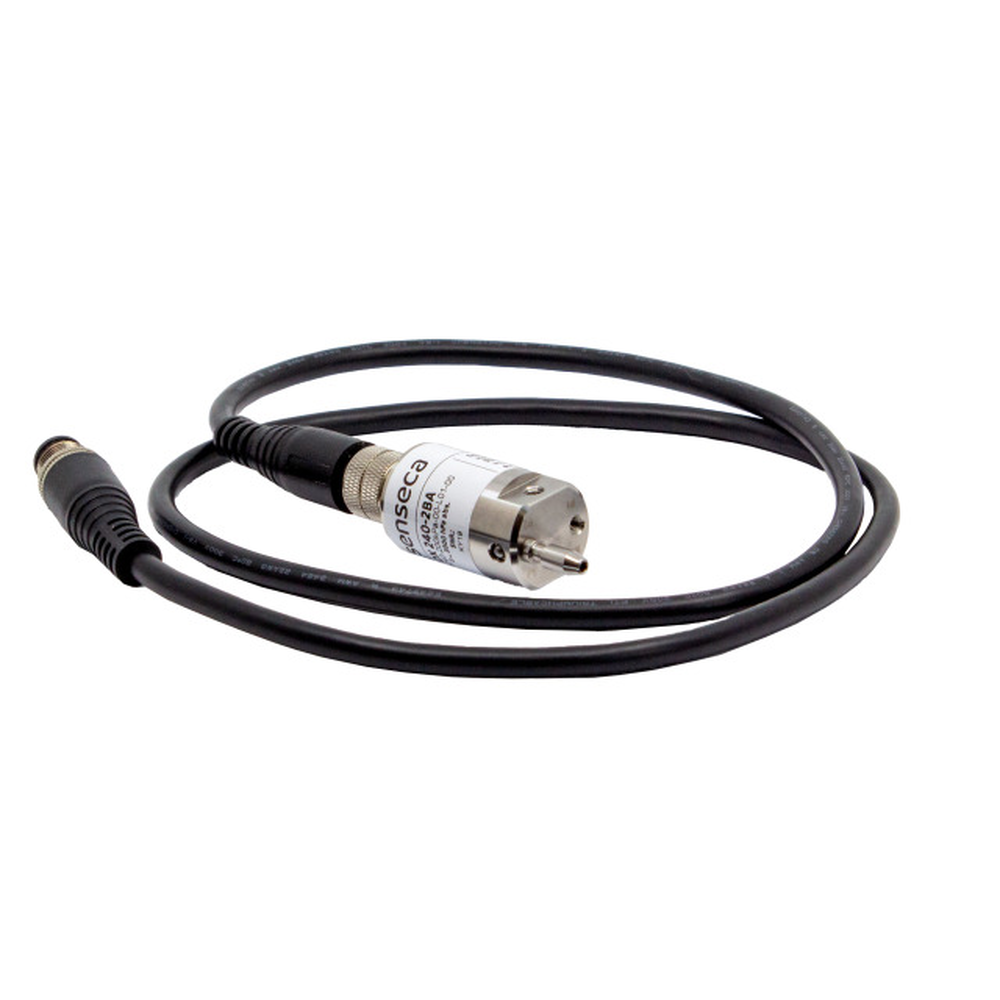

Equipped with 4-pin M12 connector.
Output:
UART (TTL 3.3V)
Power supply:
3.3…6 Vdc
Dimensions:
21.7 x 62 mm
Weight:
74 g approx.
Material:
Stainless steel
Sensor:
MEMS
Measuring range:
From ±2.5 hPa to ±700 kPa differential or 0…200 kPa absolute depending on model
Resolution:
Depending on sensor model
Accuracy:
±0.5 %FS @ 25 °C
Overall error:
±2.5 %FS over the whole compensated temperature range
Warm-up time:
2.3 ms
Long-term stability:
< 1 %FS / year
Compensated temperature:
0…+50 °C
Operating conditions:
-25…+85 °C / 0…95% RH non-condensing
Storage temperature:
-40…+125 °C
Overpressure:
3 x FS
Burst pressure:
6 x FS
Connection (to process):
For 6x1 mm (internal 4 mm) and 8x1 mm (internal 6 mm) hoses. 2 inputs for differential probes, 1 input for absolute probes
