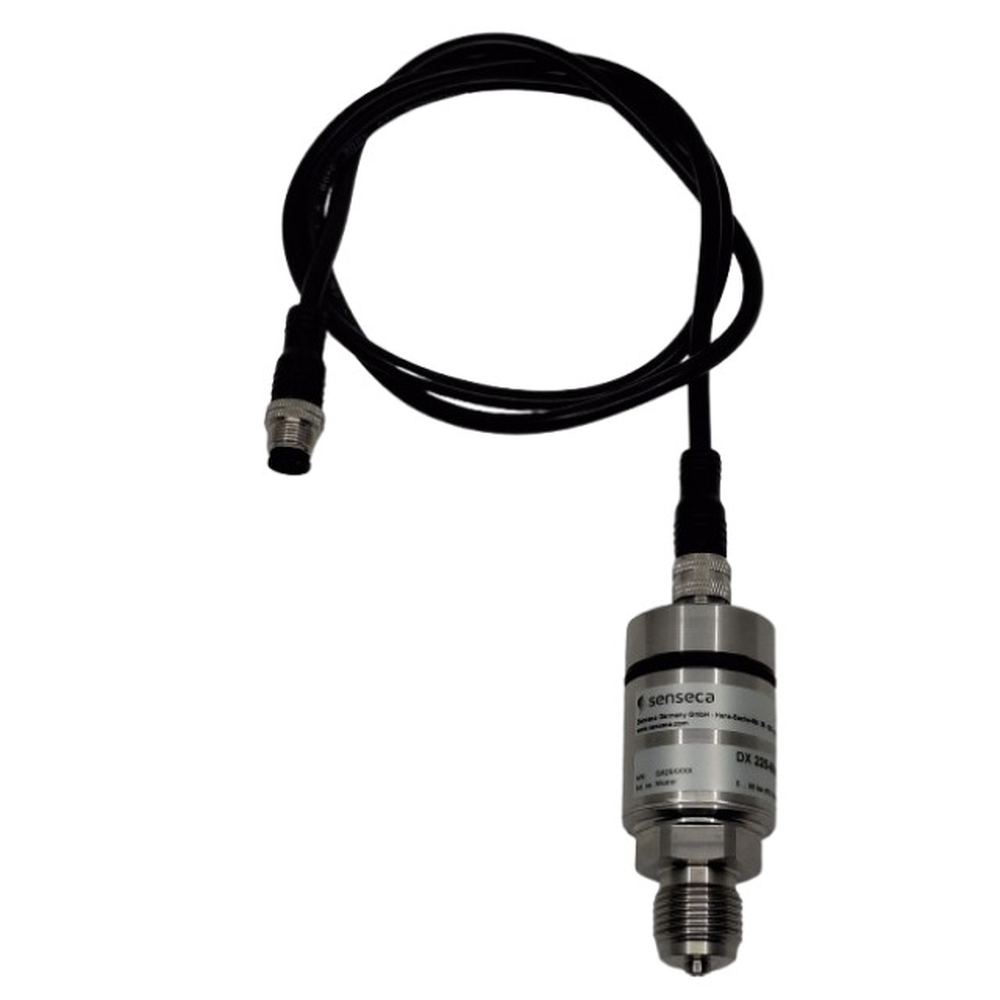

DX245 - Digital absolute pressure sensor with pressure gauge connection thread G½B (e.g. for PRO D0x)

Producer

Protection class:
IP67
Output:
DX-Sensor-Interface, interchangeable without loss of accuracy
Connection:
dx
Weight:
280 g
Material:
Stainless steel
Sensor:
<=40 bar: piezoresistive; >40 bar: thin film cell
Measuring range:
1 … 25 bar abs.
Resolution:
Depending on sensor model
Accuracy:
0.1 % FS
Compensated temperature:
-20 ... +60 °C
Operating conditions:
-20 … +60 °C / 0 … 95% RH non-condensing
Storage temperature:
-20 … +80 °C
Overpressure:
< 25 bar: 3-fold; > 25 ... ≤ 600 bar: 2-fold
Measurement rate:
normal: 1 /s, fast: Internally 50 /s
Housing material:
Stainless steel


Enquire for more information
please weait… Your data is being loaded...

Article no. Order Code Measuring range Calibration Pressure connection Media Scope of delivery minimal quantity Product comparison
489361 DX 245-1bar-00-L1 DX245-1bar-00-L1 0 ... 1000 hPa abs. Factory adjustment with test protocol Gauge connection thread G½B All liquids and gases compatible with 316 CrNi steel Device in carton box, incl. 1 m connection cable CABLE-M12-L01, Quickstart and test protocol 1 Delivery time
489365 DX 245-2.5bar-00-L1 DX245-2.5bar-00-L1 0 ... 2500 hPa abs. Factory adjustment with test protocol Gauge connection thread G½B All liquids and gases compatible with 316 CrNi steel Device in carton box, incl. 1 m connection cable CABLE-M12-L01, Quickstart and test protocol 1 Delivery time
489362 DX 245-4bar-00-L1 DX245-4bar-00-L1 0 ... 4000 hPa abs. Factory adjustment with test protocol Gauge connection thread G½B All liquids and gases compatible with 316 CrNi steel Device in carton box, incl. 1 m connection cable CABLE-M12-L01, Quickstart and test protocol 1 Delivery time
489363 DX 245-6bar-00-L1 DX245-6bar-00-L1 0 ... 6000 hPa abs. Factory adjustment with test protocol Gauge connection thread G½B All liquids and gases compatible with 316 CrNi steel Device in carton box, incl. 1 m connection cable CABLE-M12-L01, Quickstart and test protocol 1 Delivery time
489364 DX 245-10bar-00-L1 DX245-10bar-00-L1 0.00 ... 10.00 bar abs. Factory adjustment with test protocol Gauge connection thread G½B All liquids and gases compatible with 316 CrNi steel Device in carton box, incl. 1 m connection cable CABLE-M12-L01, Quickstart and test protocol 1 Delivery time
489366 DX 245-25bar-00-L1 DX245-25bar-00-L1 0.00 ... 25.00 bar abs. Factory adjustment with test protocol Gauge connection thread G½B All liquids and gases compatible with 316 CrNi steel Device in carton box, incl. 1 m connection cable CABLE-M12-L01, Quickstart and test protocol 1 Delivery time
