Senseca Germany GmbH

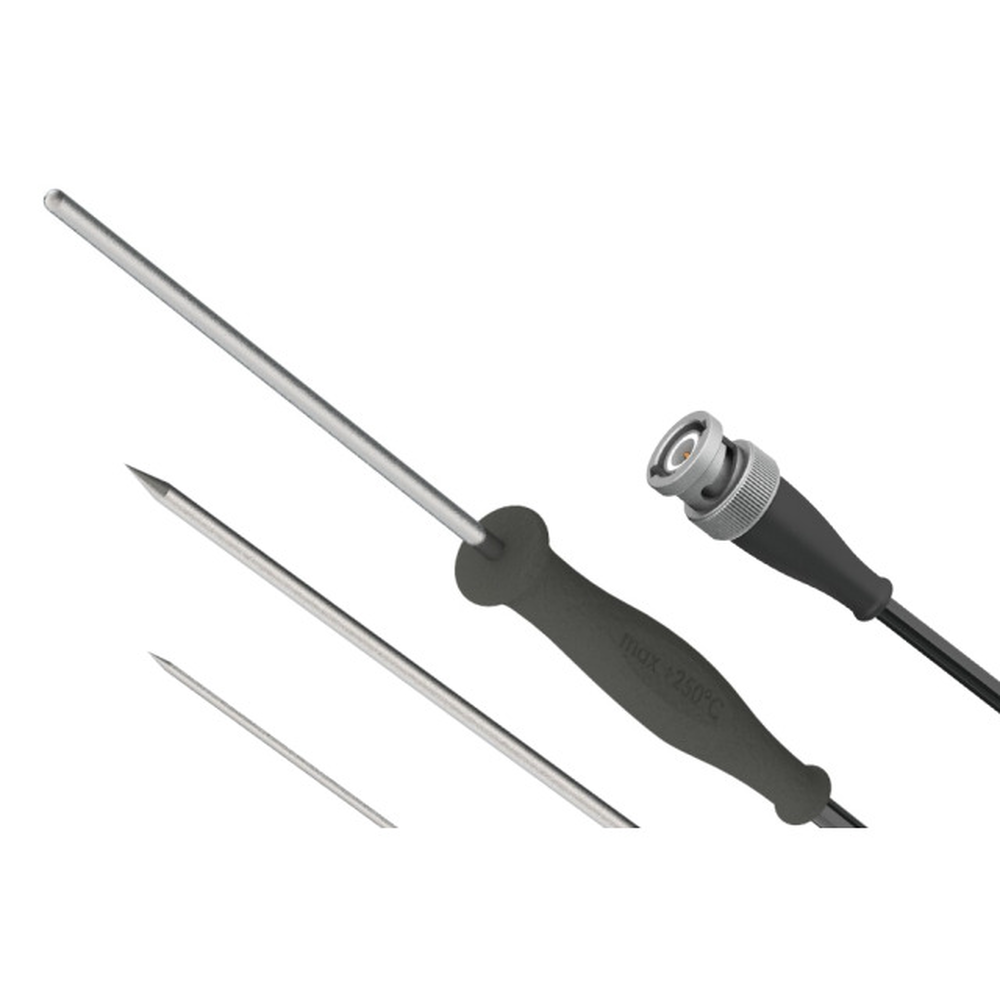

GF 1T - Compact Pt1000 temperature probe with silicone handle

Producer

compact Pt1000 immersion probe with silicone handle, Ø 3 mm with audio plug

Connection:
BNC (waterprotected), banana plugs, phone connector Ø3.5 mm or loose ends
Sensor:
Pt1000, 2-wire, thinfilm sensor
Applications:
immersion/insertion
Handle material:
black silicon, -50 ... +230 °C permanent, short-time +250 °C
Handle length:
70 mm
Cable:
silicone cable, -50 ... +230 °C permanent, short-time +250 °C


Enquire for more information
please weait… Your data is being loaded...

Article no. Order Code Connection Probe length Cable and length Measuring range Accuracy Model Diameter probe tube Weight Probe handle Probe tube material Scope of delivery Reaction time (T90) minimal quantity Product comparison
411168 GF1T-T3-B-KS GF1T-T3-B-KS Jack connector Ø3.5 mm gold-plated 100 mm 1 m, silicon -70 ... +250 °C Class B Immersion probe Ø3 mm Ø3 mm ca. 40 g Black silicon handle, -50 ... +250 °C V4A Device in carton box Water 0.4 m/s <2 s, air 2 m/s approx. 40s 1 Delivery time
483074 GF1T-E3-B-BNC-MB3-150 GF1T-E3-B-BNC-MB3-150 BNC plug (e.g. ECO 120 / G 1700) 100 mm 1 m, silicon -70 ... +400 °C Class B Insertion probe Ø3 mm Ø3 mm ca. 40 g Black silicon handle, -50 ... +250 °C V4A Device in carton box Water 0.4 m/s <2 s, air 2 m/s approx. 40s 1 Delivery time
485882 GF1T-T3-B-BS-150 GF1T-T3-B-BS-150 2 x banana plug Ø4 mm 150 mm 1 m, silicon -70 ... +250 °C Class B Immersion probe Ø3 mm Ø3 mm ca. 40 g Black silicon handle, -50 ... +250 °C V4A Device in carton box Water 0.4 m/s <2 s, air 2 m/s approx. 40s 1 Delivery time
486517 GF1T-E3-B-BNC-MB4 GF1T-E3-B-BNC-MB4 BNC plug (e.g. ECO 120 / G 1700) 100 mm 1 m, silicon -200 ... +250 °C Class B Insertion probe Ø3 mm Ø3 mm ca. 40 g Black silicon handle, -50 ... +250 °C V4A Device in carton box Water 0.4 m/s <2 s, air 2 m/s approx. 40s 1 Delivery time
609547 GF1T-T3-B-LE GF1T-T3-B-LE Loose ends with wire end ferrules 100 mm 1 m, silicon -70 ... +250 °C Class B Immersion probe Ø3 mm Ø3 mm ca. 40 g Black silicon handle, -50 ... +250 °C V4A Device in carton box Water 0.4 m/s <2 s, air 2 m/s approx. 40s 1 Delivery time
609548 GF1T-T3-AA-LE GF1T-T3-AA-LE Loose ends with wire end ferrules 100 mm 1 m, silicon -70 ... +250 °C Class AA, (valid range 0...+150°C) Immersion probe Ø3 mm Ø3 mm ca. 40 g Black silicon handle, -50 ... +250 °C V4A Device in carton box Water 0.4 m/s <2 s, air 2 m/s approx. 40s 1 Delivery time
609549 GF1T-T3-B-BNC GF1T-T3-B-BNC BNC plug (e.g. ECO 120 / G 1700) 100 mm 1 m, silicon -70 ... +250 °C Class B Immersion probe Ø3 mm Ø3 mm ca. 40 g Black silicon handle, -50 ... +250 °C V4A Device in carton box Water 0.4 m/s <2 s, air 2 m/s approx. 40s 1 Delivery time
609550 GF1T-T3-AA-BNC GF1T-T3-AA-BNC BNC plug (e.g. ECO 120 / G 1700) 100 mm 1 m, silicon -70 ... +250 °C Class AA, (valid range 0...+150°C) Immersion probe Ø3 mm Ø3 mm ca. 40 g Black silicon handle, -50 ... +250 °C V4A Device in carton box Water 0.4 m/s <2 s, air 2 m/s approx. 40s 1 Delivery time
609635 GF1T-E3-B-KS GF1T-E3-B-KS Jack connector Ø3.5 mm gold-plated 100 mm 1 m, silicon -70 ... +250 °C Class B Insertion probe Ø3 mm Ø3 mm ca. 40 g Black silicon handle, -50 ... +250 °C V4A Device in carton box Water 0.4 m/s <2 s, air 2 m/s approx. 40s 1 Delivery time
609637 GF1T-E3-B-LE GF1T-E3-B-LE Loose ends with wire end ferrules 100 mm 1 m, silicon -70 ... +250 °C Class B Insertion probe Ø3 mm Ø3 mm ca. 40 g Black silicon handle, -50 ... +250 °C V4A Device in carton box Water 0.4 m/s <2 s, air 2 m/s approx. 40s 1 Delivery time
609638 GF1T-E3-AA-LE GF1T-E3-AA-LE Loose ends with wire end ferrules 100 mm 1 m, silicon -70 ... +250 °C Class AA, (valid range 0...+150°C) Insertion probe Ø3 mm Ø3 mm ca. 40 g Black silicon handle, -50 ... +250 °C V4A Device in carton box Water 0.4 m/s <2 s, air 2 m/s approx. 40s 1 Delivery time
609639 GF1T-E3-B-BNC GF1T-E3-B-BNC BNC plug (e.g. ECO 120 / G 1700) 100 mm 1 m, silicon -70 ... +250 °C Class B Insertion probe Ø3 mm Ø3 mm ca. 40 g Black silicon handle, -50 ... +250 °C V4A Device in carton box Water 0.4 m/s <2 s, air 2 m/s approx. 40s 1 Delivery time
609640 GF1T-E3-AA-BNC GF1T-E3-AA-BNC BNC plug (e.g. ECO 120 / G 1700) 100 mm 1 m, silicon -70 ... +250 °C Class AA, (valid range 0...+150°C) Insertion probe Ø3 mm Ø3 mm ca. 40 g Black silicon handle, -50 ... +250 °C V4A Device in carton box Water 0.4 m/s <2 s, air 2 m/s approx. 40s 1 Delivery time
609641 GF1T-E1.5-B-KS GF1T-E1.5-B-KS Jack connector Ø3.5 mm gold-plated 100 mm 1 m, silicon -70 ... +250 °C Class B Inserttion probe Ø1.5 mm Ø1.5 mm ca. 40 g Black silicon handle, -50 ... +250 °C V4A Device in carton box water 0.4 m/s < 1 s, air 2 m/s approx. 12 s 1 Delivery time
609643 GF1T-E1.5-B-LE GF1T-E1.5-B-LE Loose ends with wire end ferrules 100 mm 1 m, silicon -70 ... +250 °C Class B Inserttion probe Ø1.5 mm Ø1.5 mm ca. 40 g Black silicon handle, -50 ... +250 °C V4A Device in carton box water 0.4 m/s < 1 s, air 2 m/s approx. 12 s 1 Delivery time
609644 GF1T-E1.5-A-LE GF1T-E1.5-A-LE Loose ends with wire end ferrules 100 mm 1 m, silicon -70 ... +250 °C Class A, (valid range -30...+250°C) Inserttion probe Ø1.5 mm Ø1.5 mm ca. 40 g Black silicon handle, -50 ... +250 °C V4A Device in carton box water 0.4 m/s < 1 s, air 2 m/s approx. 12 s 1 Delivery time
609645 GF1T-E1.5-B-BNC GF1T-E1.5-B-BNC BNC plug (e.g. ECO 120 / G 1700) 100 mm 1 m, silicon -70 ... +250 °C Class B Inserttion probe Ø1.5 mm Ø1.5 mm ca. 40 g Black silicon handle, -50 ... +250 °C V4A Device in carton box water 0.4 m/s < 1 s, air 2 m/s approx. 12 s 1 Delivery time
609646 GF1T-E1.5-A-BNC GF1T-E1.5-A-BNC BNC plug (e.g. ECO 120 / G 1700) 100 mm 1 m, silicon -70 ... +250 °C Class A, (valid range -30...+250°C) Inserttion probe Ø1.5 mm Ø1.5 mm ca. 40 g Black silicon handle, -50 ... +250 °C V4A Device in carton box water 0.4 m/s < 1 s, air 2 m/s approx. 12 s 1 Delivery time
611088 GF1T-T3-B-BS GF1T-T3-B-BS 2 x banana plug Ø4 mm 100 mm 1 m, silicon -70 ... +250 °C Class B Immersion probe Ø3 mm Ø3 mm ca. 40 g Black silicon handle, -50 ... +250 °C V4A Device in carton box Water 0.4 m/s <2 s, air 2 m/s approx. 40s 1 Delivery time
611297 GF1T-L3-B-BNC GF1T-L3-B-BNC BNC plug (e.g. ECO 120 / G 1700) 100 mm 1 m, silicon -70 ... +250 °C Class B Air / gas probe Ø3 mm for clean media Ø3 mm ca. 40 g Black silicon handle, -50 ... +250 °C V4A, punched Device in carton box air 2 m/s approx. 15s 1 Delivery time
611298 GF1T-L3-B-LE GF1T-L3-B-LE Loose ends with wire end ferrules 100 mm 1 m, silicon -70 ... +250 °C Class B Air / gas probe Ø3 mm for clean media Ø3 mm ca. 40 g Black silicon handle, -50 ... +250 °C V4A, punched Device in carton box air 2 m/s approx. 15s 1 Delivery time
611763 GF1T-T3-B-BNC-MB4 GF1T-T3-B-BNC-MB4 BNC plug (e.g. ECO 120 / G 1700) 100 mm 1 m, silicon -200 ... +250 °C Class B Immersion probe Ø3 mm Ø3 mm ca. 40 g Black silicon handle, -50 ... +250 °C V4A Device in carton box Water 0.4 m/s <2 s, air 2 m/s approx. 40s 1 Delivery time
