Senseca Germany GmbH

DX 530 - Digital optical dissolved oxygen sensor, economic field style

Producer

  • The DX 53x sensor family includes 3 variations of state-of-the-art dissolved oxygen sensors. The optical measuring principle eliminates the need of chemical substances and frequent maintenance as well as the necessity of minimum flow at measuring membrane. With the fully digital DX interface it can be paired to any DX sensor of the wide range of the SENSECA PRO-line, in combination with the PRO D01/ D05 up to 3 sensors can be connected and evaluated in parallel.
    DX 530: ODO probe, economic field style
    The best choice for field measuring in sweet water aquafarming, river monitoring, well water analysis and wastewater monitoring- combined with e.g. PRO D01 a very competitive and reliable measuring tool
    DX 532: ODO probe, heavy duty field style up to 30 m depth, depth measuring channel
    The extra robust field specialist for harsh environments like wastewater and sea water aquafarming.
    Due to integrated hydrostatic depth measurement channel and consequent water protection oxygen saturation profiles can be recorded very comfortably, and thermoclines can easily be located down to nearly 30 m: oxygen rich Epilimnion/ oxygen lacking Hypolimnion.

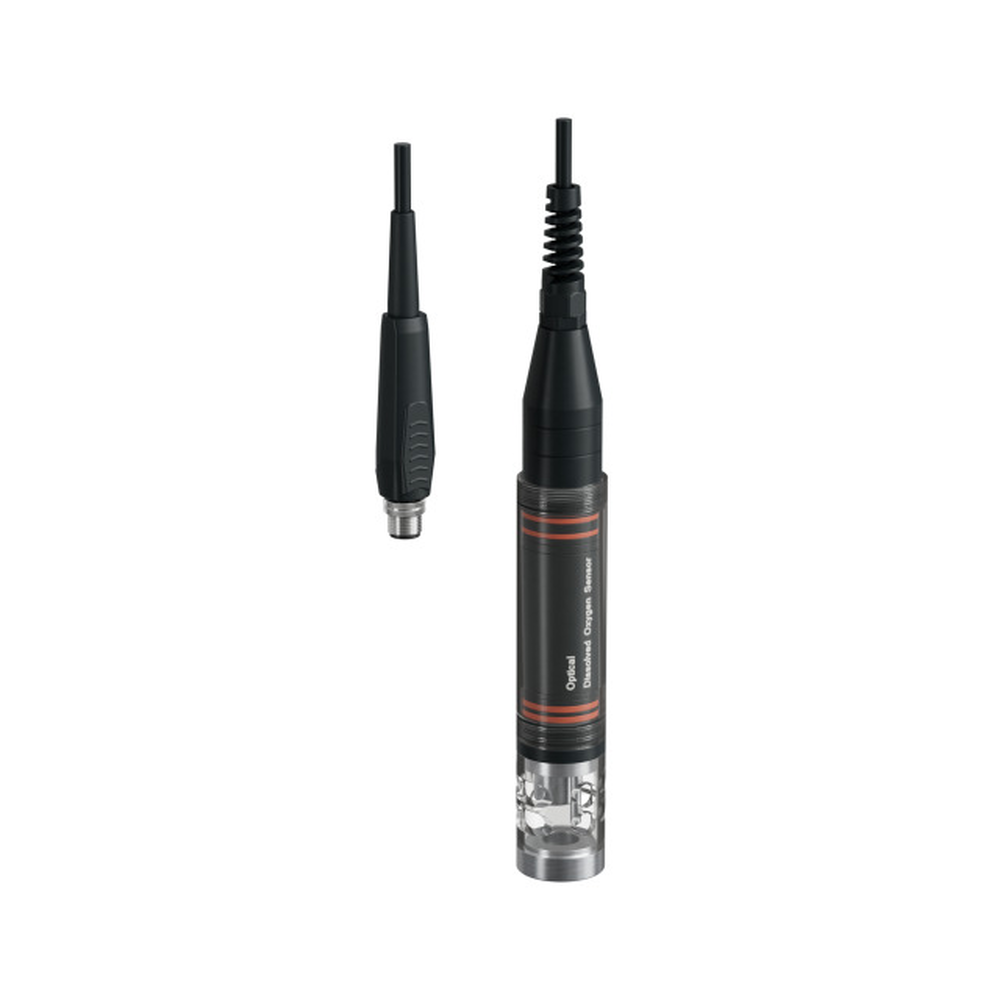

    DX 535: ODO probe, lab style probe Ø12 mm, 0 ... 200 %
    Near-surface waters, wastewater up to 1 m water depth, also ideally suited for laboratories due to small diameter Ø 12 mm, e.g. BSB determination: due to the fact, that used measurement principle is non- consuming, this ensures maximum achievable precision.

Output:
DX-Sensor-Interface


Enquire for more information
please weait… Your data is being loaded...

Article no. Order Code 1 year drift Measuring range Resolution Version Working temperature Cable length Dimensions Weight Temperature sensor Pressure resistance Electrolyte Thread Connection pH minimal quantity Product comparison
488968 DX 530-L05 DX 530-L05 Oxygen saturation 0.0 … 200.0 % O2 sat
Oxygen concentration 0.00 … 20.00 mg/l (ppm)
Temperature 0.0 … 45.0 °C		 Oxygen saturation 0.0 … 200.0 % O2 sat
Oxygen concentration 0.00 … 20.00 mg/l (ppm)
Temperature 0.0 … 45.0 °C		 10 ppb, 0.01 mg/l
0.1 % O2 sat		 economic field type 0 … 45 °C 5 m 256 mm, incl. connector and bending protection, Ø32 mm 400 g incl. 5 m Kabel With integrated Pt1000 sensor via 4 mm banana plug 5 bar Gel-Electrolyte Without thread waterproof BNC plug 1 Delivery time
