PRO 11x - Pt100 4-wire - high precision thermometer, graphic display

INTRODUCTION
PRO 111 and PRO 115 are high class professional handheld meters for 4-wire Pt100 probes with a rich set of features, high grade robustness and operating comfort for safe and reliable use.
PRO 115 also has data logging capability.

FEATURES
Display

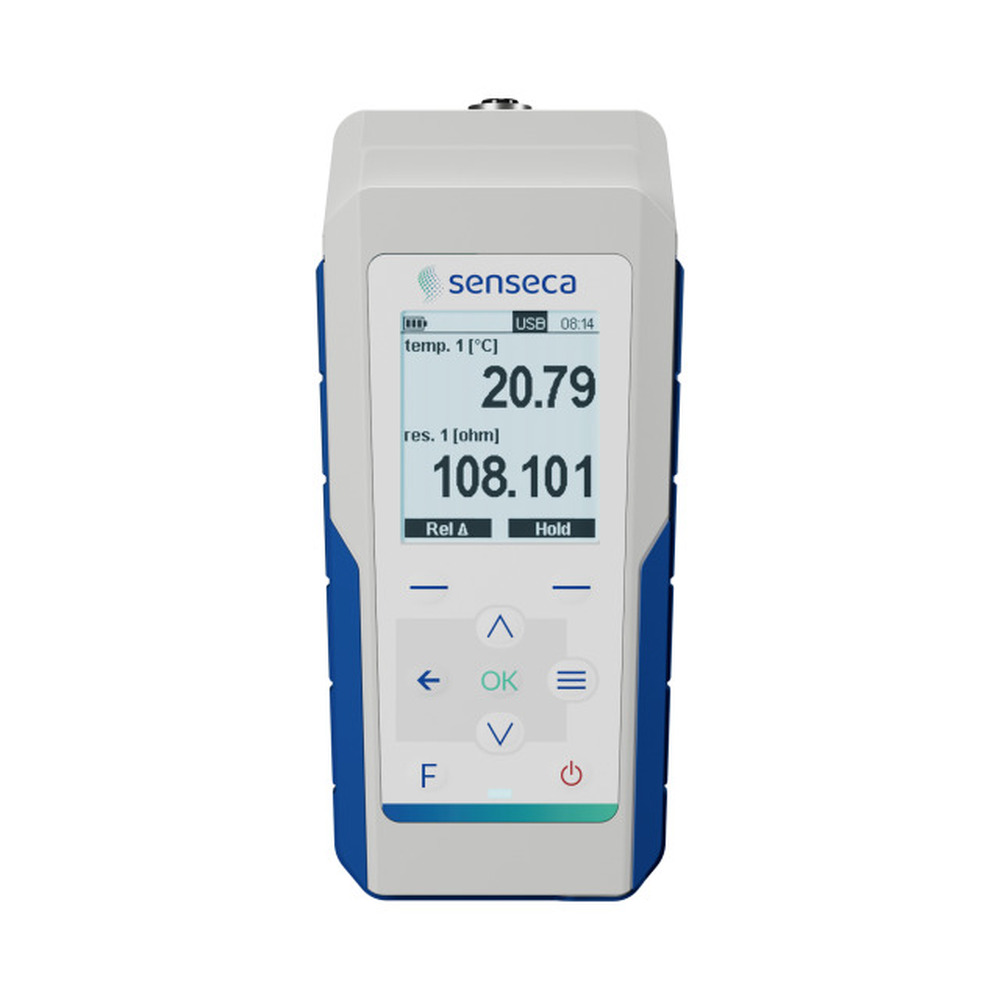

The multilingual large dot matrix/clear text LCD has ergonomic wide-angle visibility from daylight to darkness, thanks to the backlight.
It displays either large scale values, statistical data or the chart of a variable measurement history.
The HOLD feature allows freezing the measurements on display, while the REL feature allows showing the measurement against the measured value.
°C, °F and K units of measurement are available.
On demand, the display of the corresponding resistance can also be switched on.
Data Logging (only PRO 115)
Large storage capacity: up to 1 million data, file system based.
The logged data are store in CVS files that can be easily viewed connecting the instrument to a PC via USB: the instrument is seen by the PC as a mass storage device, the data can be read oud and evaluated without software necessarily needed.
Automatic log with configurable interval.
The instruments integrate a Real Time Clock: date and time of each logged sample are stored.
Alarm
Configurable alarm thresholds and optionally hysteresis can be set.
LCD indication and buzzer activation when thresholds are exceeded.

CONFIGURATION & MEASUREMENT
Probes
Any 4-wire Pt100 standard probe can be connected, provided it is equipped with an M12 connector.
The high-precision temperature-compensated analog front-end of the meter does not add any significant error to the measurement chain, making the instrument a low-cost high-class reference system.
The sophisticated polynomial sensor linearization gets the best out of your Pt100 temperature probe and provides all relevant possibilities for calibration and adjustment.
Connection to PC
Via the USB C port, for viewing or downloading the files stored in the instrument internal memory (only PRO 115) or connecting to the application software ProXware.
Statistics
Detection of MIN, AVG (average) and MAX. The user can clear the statistical info to start a new statistical calculation.

Protection class:

IP 67 (except probe connection), IK 04

Storage capacity:

only PRO 115: Up to 1 million data sets, file system based
Each data set includes date/timestamp and measurement.
Data are stored in CVS files.

Logging type:

only PRO 115: Automatic with manual start/stop

Accuracy:

resolution 0.01: ±(0.03 °C + 0.06% of measured value) ± 1 digit
resolution 0.1: ±(0.1 °C + 0.2% of measured value) ± 1 digit

Measurement rate:

2 meas/s

Long-term drift:

±0.02 °C/year

Logging interval:

only PRO 115: 1, 2, 5, 10, 15, 30 s / 1, 2, 5, 10, 15, 30 min / 1 hour

Clock:

User-adjustable date and RTC function (max. drift 1 min/month @ 25 °C)

User interface:

Multilingual (de, en, it, fr, es)

PC connection:

USB C

Power supply:

4 x AA battery (included in the scope of delivery)
External 5 V DC via USB C (power adapter or PC USB port)

Power consumption:

20 mA typ.

Weight:

320 g incl. battery

Battery autonomy:

> 150 h typ. continuous operation

Auto power off:

Yes, user configurable
Automatically disabled if external power is connected

Housing material:

Shock and impact proof, ABS, TPE (side protection), Polyster (front panel),

Measuring range:

-200…+850 °C / -328…+1562 °F

Operating conditions:

-5 ... +50 °C; 0 ... 85 % RH (non-condensing)

Storage temperature:

-25…65 °C (without batteries)

Display:

140 x 160 dot-matrix LCD with backlight / visible area 42 x 50 mm, display of large-digit single values, statistical info (min/avg/max), chart view

Dimensions:

170 x 78 x 38 mm

Standard functions:

Acostic/optic alarm, automatic switch-off freely configurable by the user (automatically deactivated if external power supply is connected)

Accuracy typ.:

±0.05 °C or ±0.06% of measured value (whichever is higher) ± 1 digit

Battery life:

> 150 h typ. Continuous operation

Current consumption:

20 mA typ

Data logger with read out via USB:

only PRO 115

Extras:

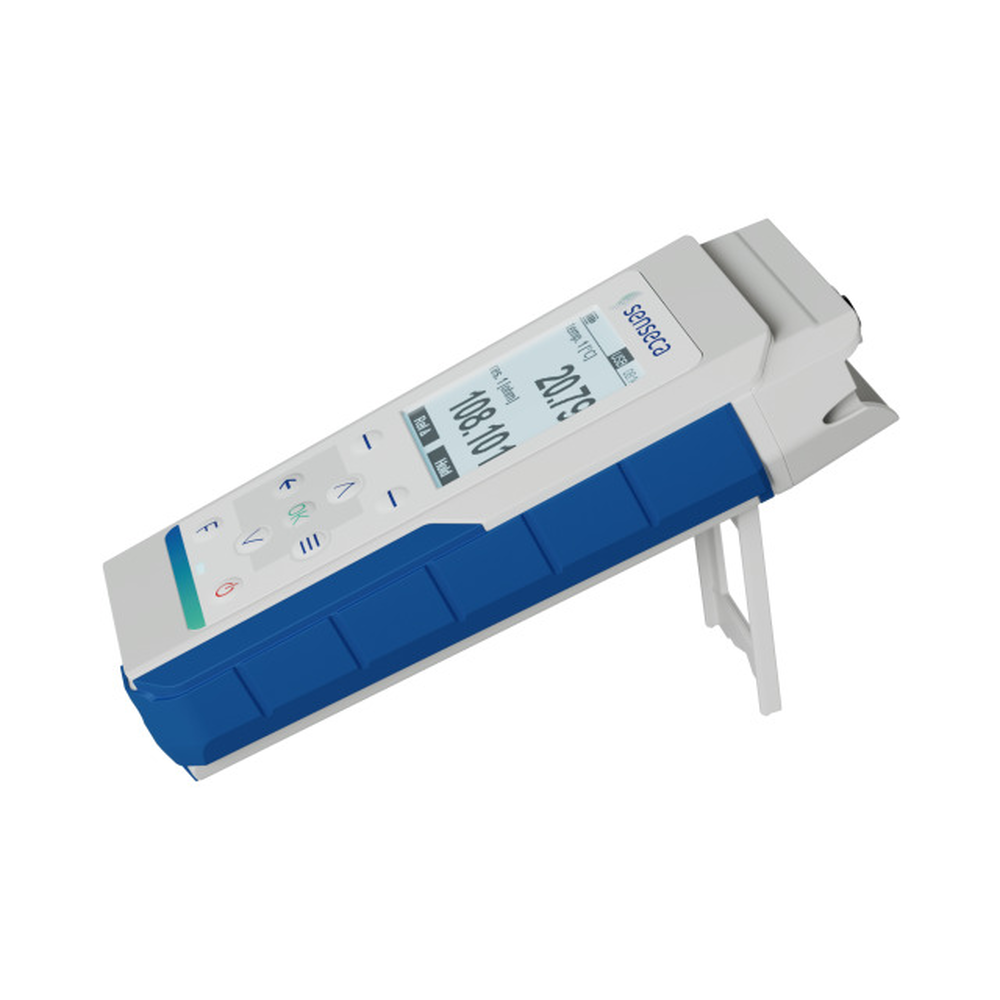

Foldable stand and magnet for flexible operation

Measuring:

Pt100 (4-wire)

Optional special functions:

Favorites menu, multilingual

Resolution:

0,01 °C/°F (depending on Measuring range )

Linearization:

According to IEC 60751

Channels:

1 for 4-wire Pt100/Pt1000 probes
4-pole M12 connector

Protection degree:

IP 67 (except probe connection)
IK 04

Adjustment methods:

CvD (R0, A, B, C) and ”zero point“ and ”gradient”

Display units:

°C / °F

Measuring input:

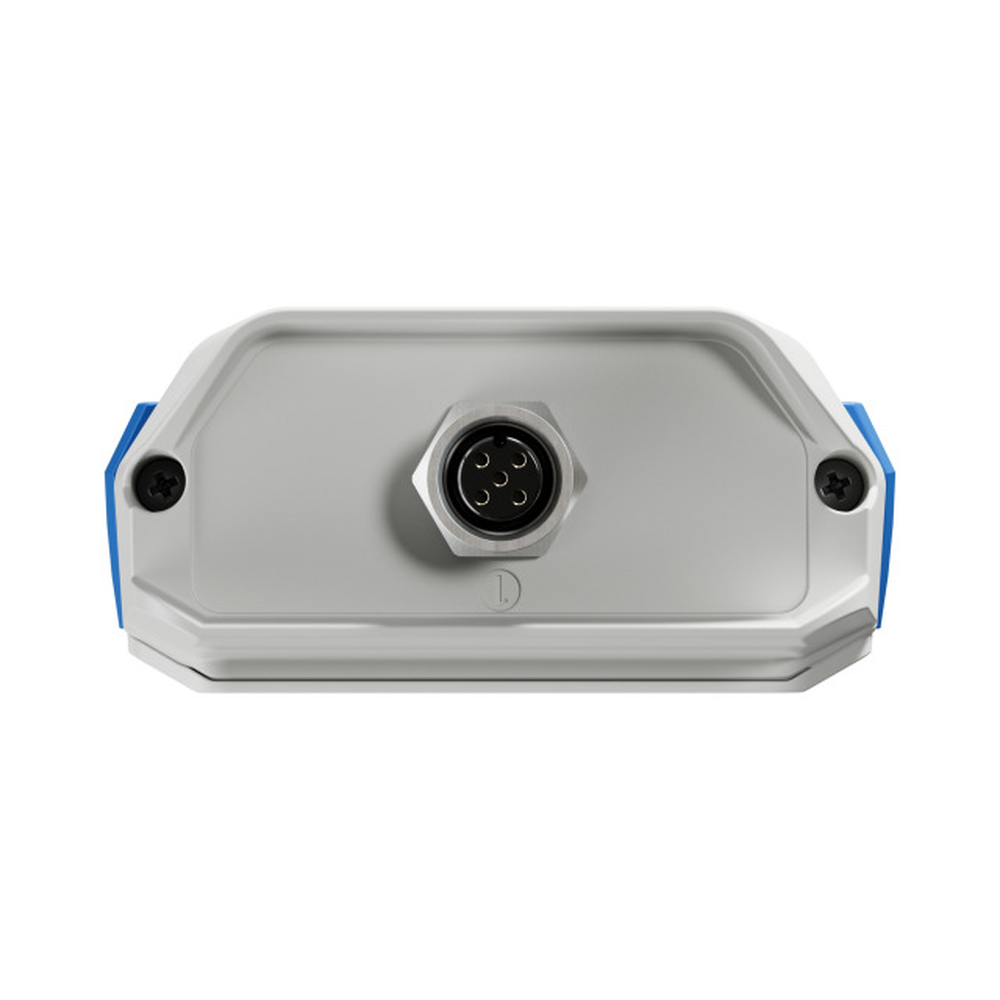

M12A Socket, 4/5-pin for 4-wire Pt100 temperature probes
