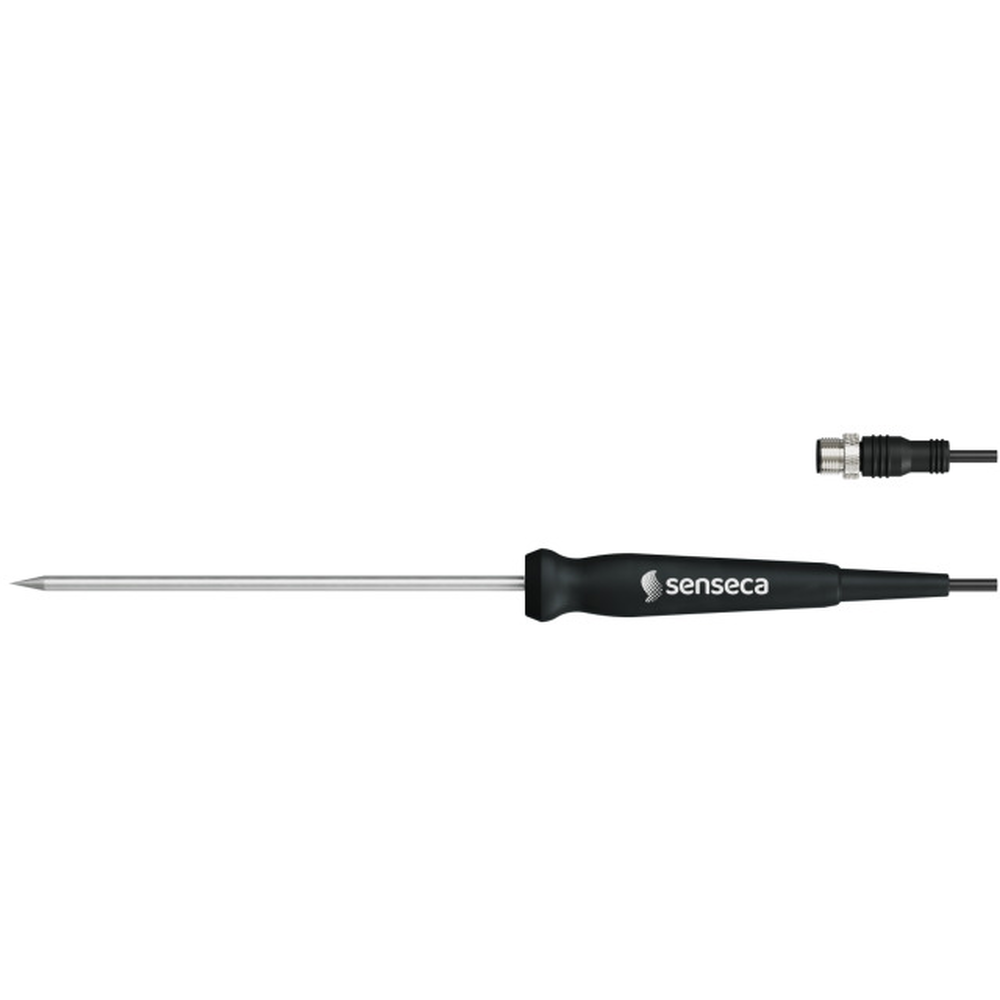

AX 11x-I - Precision analog Pt100 4-wire insertion probes, large handle

Producer

AX 111 are precision analog Pt100 temperature probes based on thin film sensor technology.
AX 115 are high precision analog probes incorporating wire wound Pt100 sensors for best precision.
The probes are designed for use in gases, liquids and soft materials.
Stem material is corrosion and temperature resistant stainless steel., which is suitable for continuous food contact.
The standard 1 meter cable is optionally terminated with M12 male connector or loose ends.
The probes can be optionally supplied with a DAkkS-/Accredia calibration certificates when combined to a suitable display instrument (e.g. PRO 111 / 115).

Connection:
M12 connector, 4-pin (e.g. for PRO 11X, pinning 1,2-Pt100-3,4),
MiniDIN (GMH 37xx) or loose ends
Dimensions:
Probe tube: Ø3 mm, lengths dep. on type, others on request
cable: Ø4 mm, L=1, 2 or 5 m
Sensor:
AX 111 - Pt100 (thinfilm)
AX 115 - Pt100 (wire wound)
Handle material:
Polyamide (PA6-GF30),
gland Santoprene (both up to +120 °C)
Handle length:
130 mm (incl. gland)
Cable:
Standard PVC 1m, oder length and material on request


Enquire for more information
please weait… Your data is being loaded...

Article no. Order Code Connection Probe length Cable and length Measuring range Accuracy Version Model Diameter probe tube Sensor Weight Probe tube material Scope of delivery Reaction time (T90) minimal quantity Product comparison
489005 AX111-I3-B-150-L01-P-M12 AX111-I3-B-150-L01-P-M12 M12 150 mm 1 m PVC, -20 ... +105 °C -50 ... +250 °C Class B, thin film (valid range -50...+250°C) 4-wire, fast Insertion probe, robust and fast Ø3 mm Pt100 4-wire, thin film ca. 60 g AISI 316L (1.4404) Device in carton box water 0.4 m/s < 2 s, air 2 m/s approx. 40 s 1 Delivery time
489029 AX111-IH3-B-150-L01-P-M12 AX111-IH3-B-150-L01-P-M12 M12 150 mm 1 m PVC, -20 ... +105 °C -50 ... +400 °C Class B, thin film (valid range -50...+400°C) 4-wire, fast Insertion probe, robust, high temp. Ø3 mm Pt100 4-wire, thin film ca. 60 g AISI 316L (1.4404) Device in carton box water 0.4 m/s < 10 s, air 2 m/s approx. 40 s 1 Delivery time
486830 AX111-I3-AA-150-L01-P-M12 AX111-I3-AA-150-L01-P-M12 M12 150 mm 1 m PVC, -20 ... +105 °C -50 ... +250 °C Class AA, thin film (valid range 0...+150°C) 4-wire, fast Insertion probe, robust, accurate and fast Ø3 mm Pt100 4-wire, thin film ca. 60 g AISI 316L (1.4404) Device in carton box water 0.4 m/s < 2 s, air 2 m/s approx. 40 s 1 Delivery time
489004 AX111-I3-01B-150-L01-P-M12 AX111-I3-01B-150-L01-P-M12 M12 150 mm 1 m PVC, -20 ... +105 °C -50 ... +250 °C 1/10 DIN class B wire wound (valid range -50...+100°C) 4-wire, fast Insertion probe, robust and highest accuracy Ø3 mm Pt100 4-wire, thin film ca. 60 g AISI 316L (1.4404) Device in carton box water 0.4 m/s < 2 s, air 2 m/s approx. 40 s 1 Delivery time
