Senseca Germany GmbH

Stainless steel pitot tubes

Producer

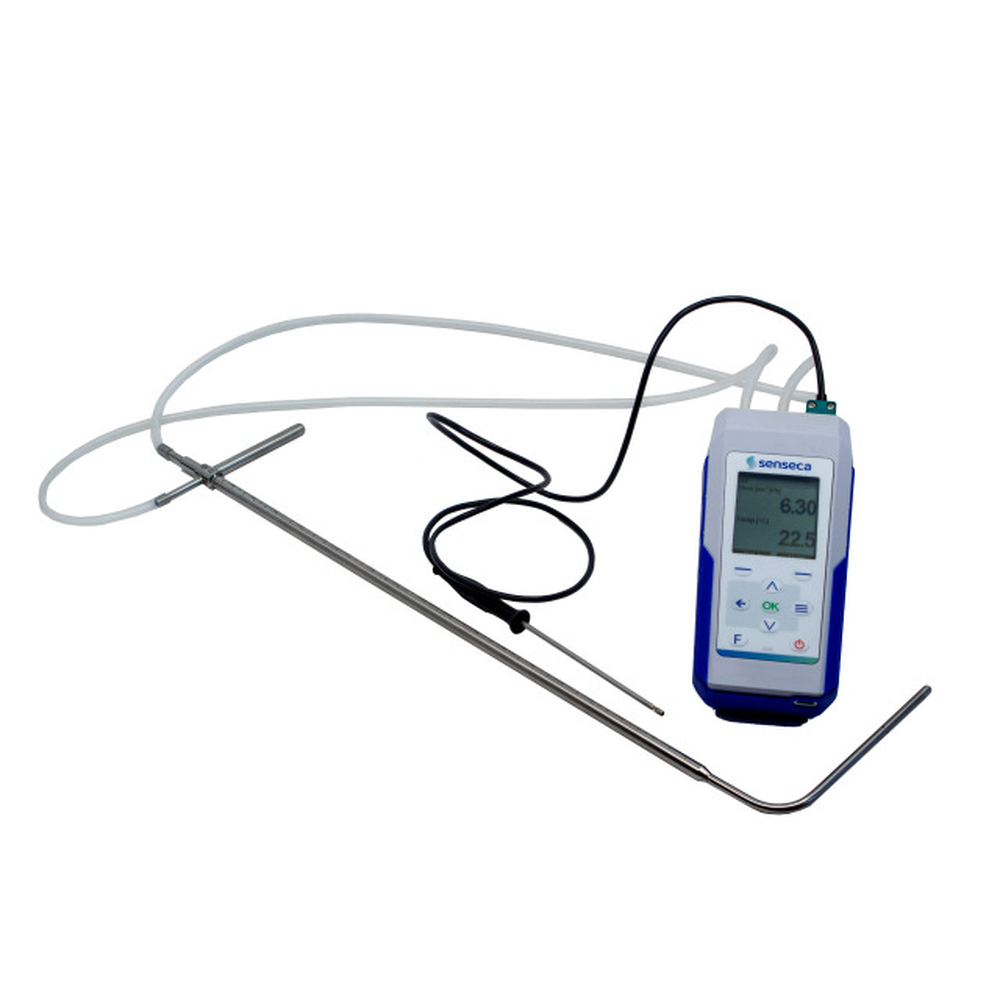

Stainless steel Pitot tubes to measure air speed (and temperature, for models provided with ‘K’ thermocouple), equipped with silicon tube with 6 mm external diam., 4 mm internal diam. and length 2 m.

Material in media contact:
AISI 316


Enquire for more information
please weait… Your data is being loaded...

Article no. Order Code Dimensions Version Connection Scope of delivery Temperature minimal quantity Product comparison
604150 Pitot-T-T0-300 Pitot-T-T0-300 Nominal length 300 mm, measuring tip Ø 3 mm, shaft: Ø 3 mm Pitot tube extra slim 3mm 2x tube connections Pitot, silicon tube, soft bag max 600°C 1 Delivery time

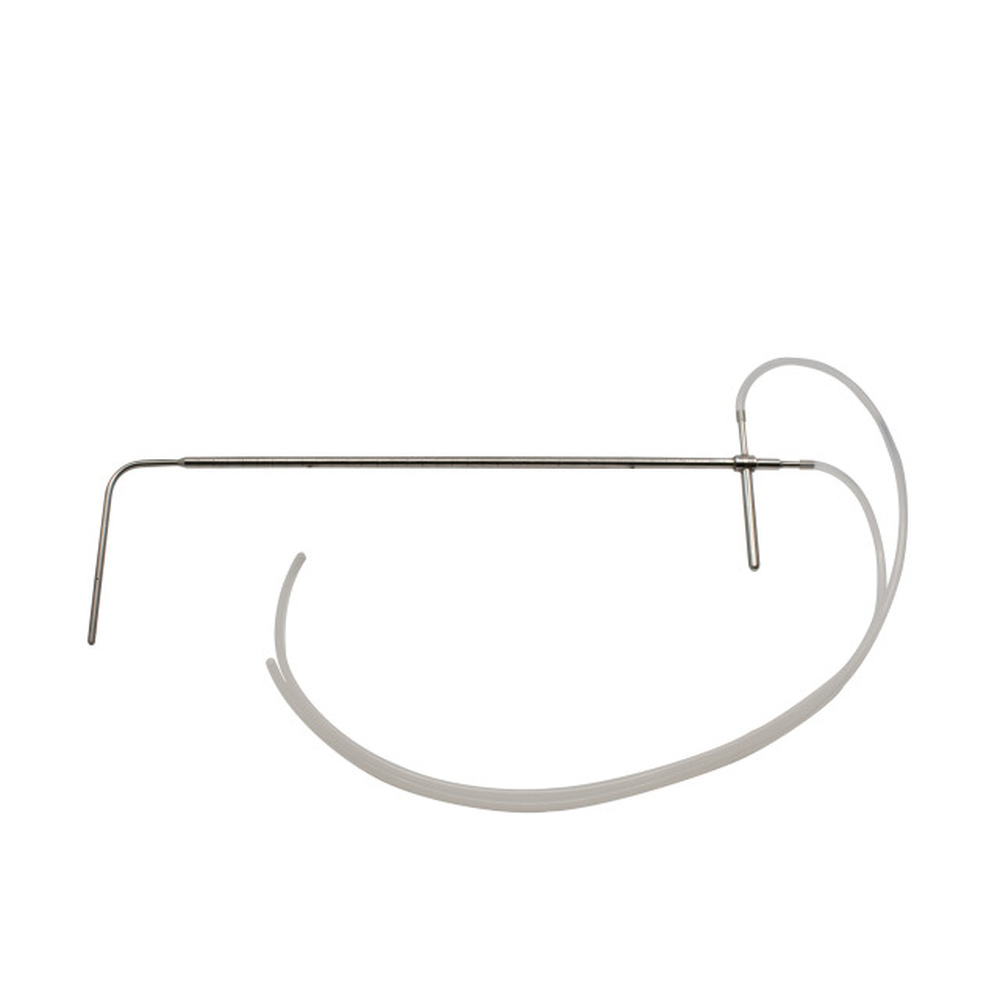

487876 Pitot-T-T2-400 Pitot-T-T2-400 Nominal length 400 mm, measuring tip Ø 5 mm, shaft: Ø 8 mm Pitot tube robust 2x tube connections Pitot, silicon tube, soft bag max 600°C 1 Delivery time
