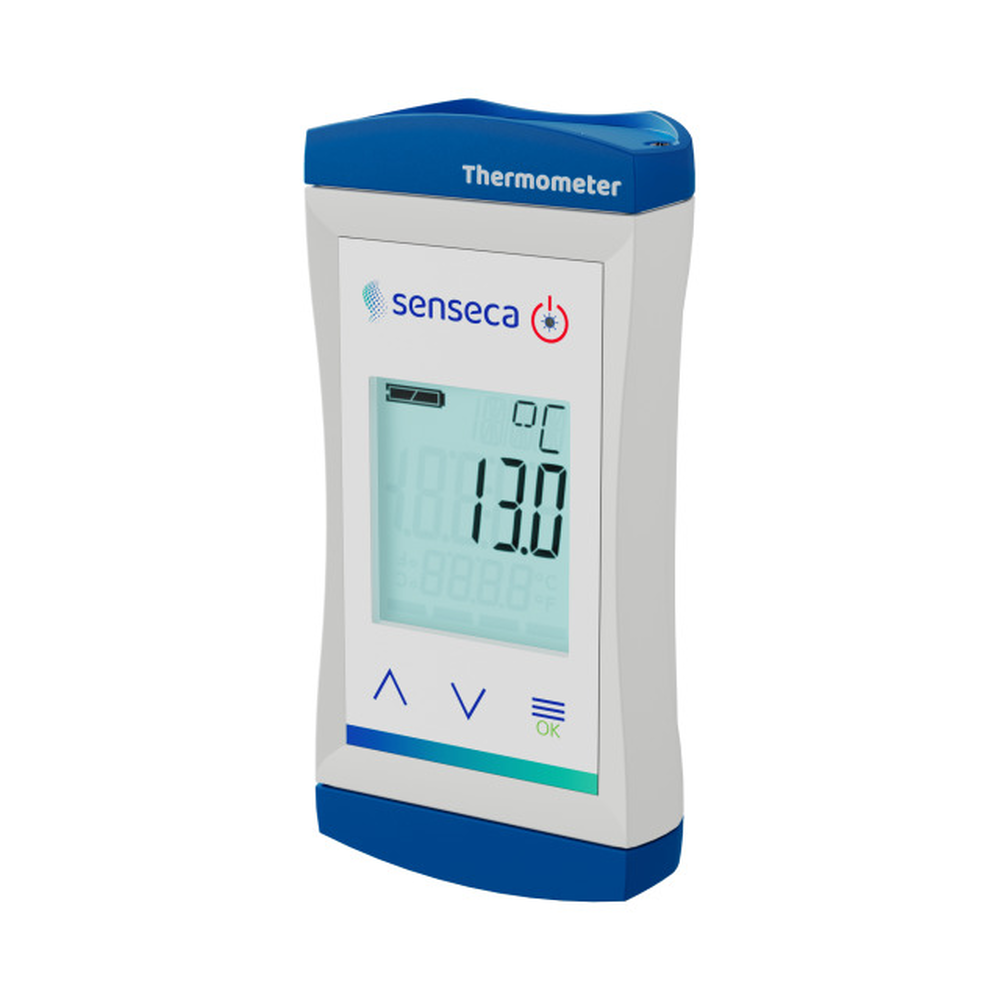

ECO 130 - Thermocouple quick response thermometer (formerly G 1200)

In the development of the new ECO 130 series, the focus was deliberately on the essential elements of measurement technology - the sophisticated thermocouple reference junction is the center of attention - for the best final accuracy - here, despite the fair overall price in a class comparison, no savings were made!
Precision, speed and reliability, packed in a compact and waterproof housing (exception: probe connection) makes the device a reliable partner for professional users and demanding hobbyists, Made in Germany.
Due to the first-class thermocouple compensation ("virtual ice point") with high-quality reference temperature measurement and sophisticated design, they achieve unrivaled measurement reliability in this class.
The simple alarm function on the ECO 130.2 makes it easier to monitor the temperature "in parallel" while
doing other things at the same time.

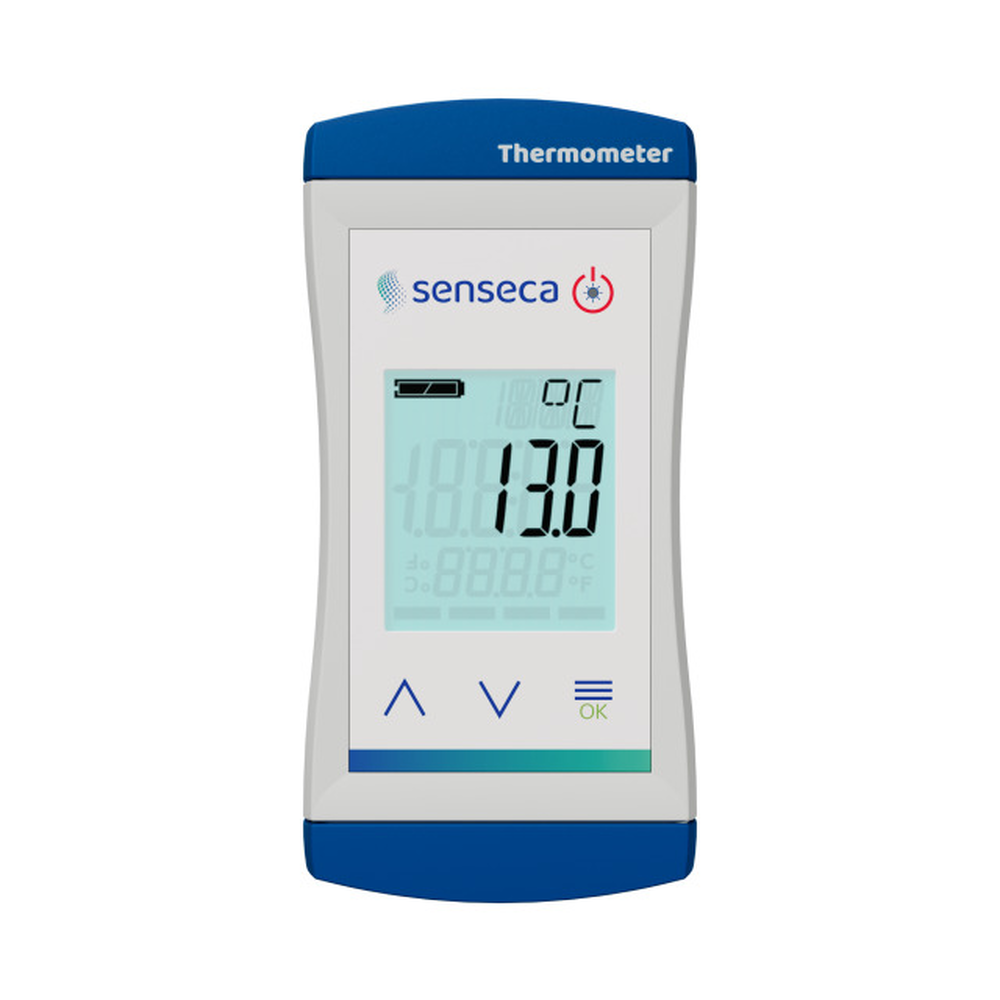

Display
Thanks to the backlight, the three-line LCD display offers ergonomic wide-angle visibility - by day and by night.
The HOLD function enables the display values to be frozen.
Power supply
2 powerful AA batteries, the energy-saving design and the configurable automatic switch-off function ensure long operation.
Configurable LCD backlight for further energy saving options.

Protection class:

IP40

Accuracy:

Instrument ±0.1 % v.MW. ±1 °C
Reference junction ±0.3 °C

Measurement rate:

Approx. 3 measurements per second

Power supply:

2 x AA Alkaline batteries (included)

Power consumption:

<1 mA

Weight:

approx. 125 g

Housing material:

break proof ABS, screw locked bat. compartment

Measuring range:

Temperature -65.0 ... 1200.0 °C / -85.0 … 2192 °F

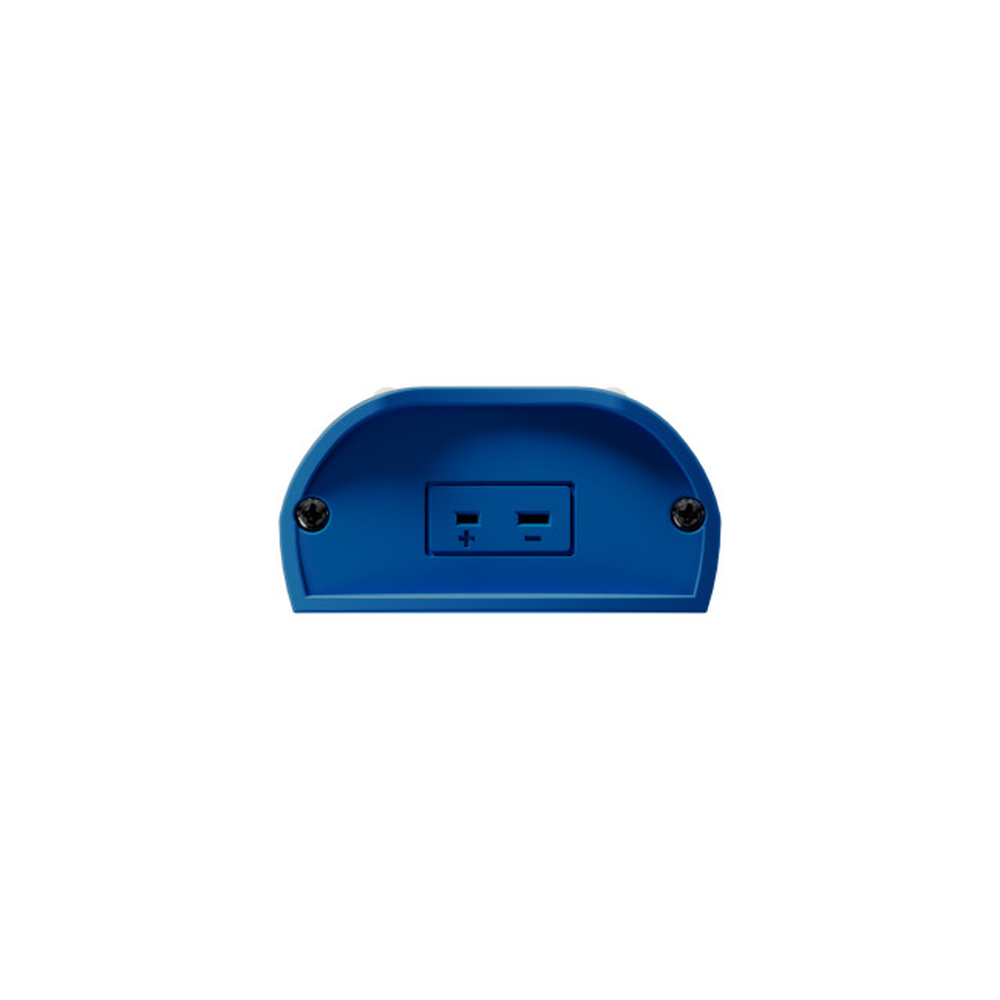

Connections:

Socket for miniature flat-pin plug

Operating conditions:

-20 to 50 °C; 0 to 85 % r.h. (non condensing)

Storage temperature:

-25…65 °C (without batteries)

Protection type:

IP 40

Display:

3-line with battery status indicator, Backlight, protected by shatterproof screen, overhead display at keypress

Dimensions:

108 x 54 x 28 mm (H x W x D)

Additional functions:

Zero and slope adjustment

Standard functions:

Min/Max/Hold,
Auto-Power-Off-function: if activated, the product switches off automatically

Accuracy (nominal temperature):

Device: ±0.1 % v.MW. ±1 °C Reference junction: ±0.3 °C

Automatic Power-Off:

Yes, configurable by the user

Battery life:

> 3000 h typ. Continuous operation

Housing:

Impact resistant ABS, Polyester (front panel)

Operating conditions instrument:

-20 to 50 °C; 0 to 85 % r.h. (non-condensing)

Input:

Socket for miniature flat-pin plug

Max cable length:

3 m
