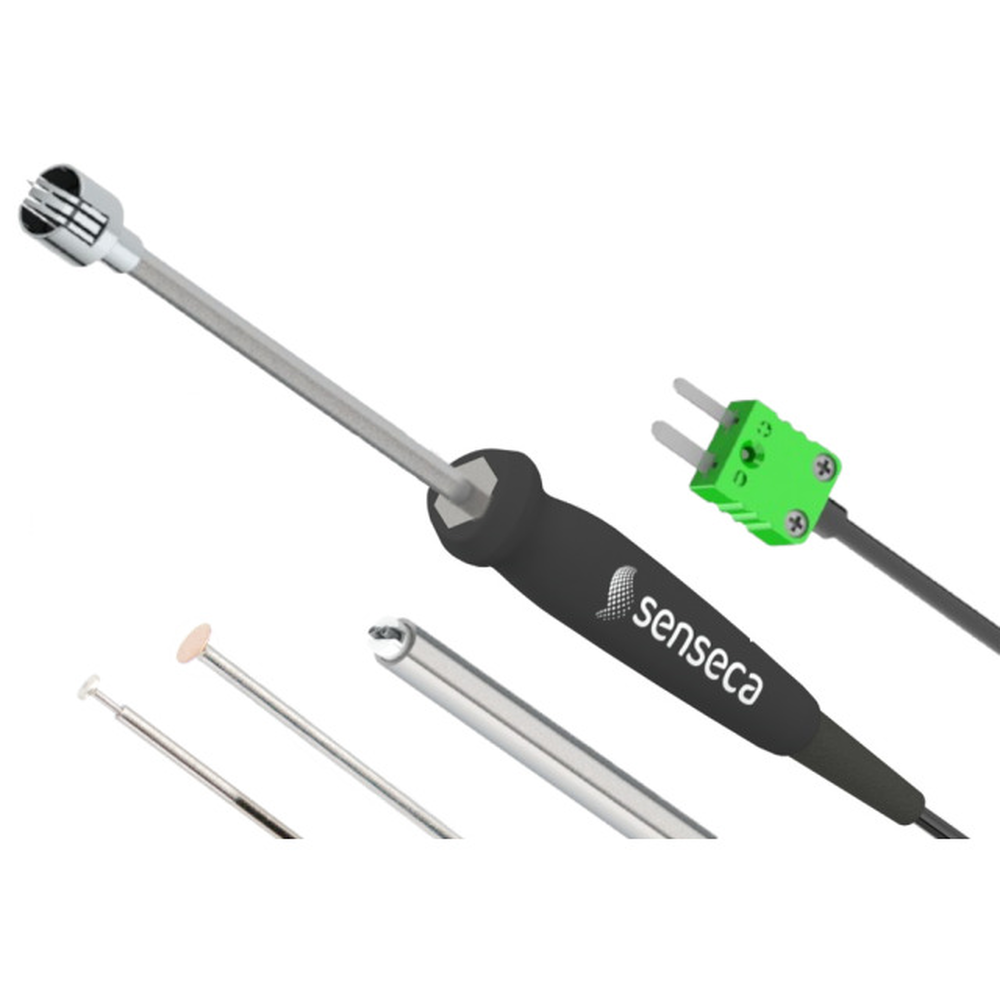

AX 131-S - Precision Type K surface temperature probe, large handle

Producer

AX 131 are precision analog type K thermocouple temperature probes.
The probes are designed for use in gases, liquids and soft materials.
Stem material is corrosion and temperature resistant stainless steel, which is suitable for continuous food contact.
The standard 1 meter thermocouple cable is optionally terminated with miniature flat plug or loose ends.
The probe can be optionally supplied with a DAkkS-/Accredia calibration certificates when combined to a suitable display instrument (e.g. PRO 131/ 135).

Connection:
Mini flat pin plug or loose ends
Handle material:
Polyamide (PA6-GF30), gland Santoprene (both up to +120 °C)
Handle length:
130 mm (incl. grommet)


Enquire for more information
please weait… Your data is being loaded...

Article no. Order Code Protection class Connection Probe length Cable and length Measuring range Version Diameter probe tube Weight Scope of delivery Reaction time T90 minimal quantity Product comparison
486854 AX131-S15-HS-L01-S-MF AX131-S15-HS-00-L01-S-MF   Mini flat pin plug 130 mm 1 m silicone cable, -50 ... +200 °C -40 ... +400 °C head Ø15 mm, springy band, straight Ø 6 mm ca. 75 g Device in carton box depending on surface 1 Delivery time
488273 AX131-S15-HS-SL200-CC12-MF AX131-S15-HS-SL200-L01-S-MF   Mini flat pin plug 200 mm 1 m silicone cable, -50 ... +200 °C -40 ... +400 °C head Ø15 mm, springy band, straight Ø6 mm   Device in carton box depending on surface 1 Delivery time
488263 AX131-S15-HS-SL300-CC12-MF AX131-S15-HS-SL300-CC12-MF   Mini flat pin plug 300 mm Coiled cable, stretchable to 1.2 m -40 ... +400 °C Surface probe spring band Ø15mm, straight Ø6 mm   Device in carton box depending on surface 1 Delivery time
486852 AX131-S15-HA-L01-S-MF AX131-S15-HA-00-L01-S-MF   Mini flat pin plug 130 mm 1 m silicone cable, -50 ... +200 °C -40 ... +400 °C head Ø15 mm, springy band, angled Ø 6 mm ca. 75 g Device in carton box depending on surface 1 Delivery time
486853 AX131-S15-TA-L01-S-MF AX131-S15-TA-00-L01-S-MF   Mini flat pin plug 130 mm 1 m silicone cable, -50 ... +200 °C -40 ... +400 °C head Ø15 mm, spring band, probe tube angled Ø 6 mm ca. 80 g Device in carton box depending on surface 1 Delivery time
488264 AX131-S4-HS-00-L01-S AX131-S4-HS-00-L01-S-MF IP67 (except connector) Mini flat pin plug 130 mm 1 m silicone cable, -50 ... +200 °C -40 ... +500 °C Copper plate measuring surfcae Ø4 mm, head straight Ø1.5 mm ca. 55 g Device in carton box depending on surface 1 Delivery time
488265 AX131-S4S-HS-00-L01-S-MF AX131-S4S-HS-00-L01-S-MF   Mini flat pin plug 130 mm 1 m silicone cable, -50 ... +200 °C -40 ... +500 °C springy copper plate measuring surface Ø4 mm, head straight Ø3 mm ca. 60 g Device in carton box depending on surface 1 Delivery time
488261 AX131-S5-HS-00-L01-S AX131-S5-HS-00-L01-S-MF IP67 (except connector) Mini flat pin plug 180 mm 1 m silicone cable, -50 ... +200 °C -40 ... +500 °C Ag measuring surfcae Ø5 mm, Head straight Ø3 mm ca. 60 g Device in carton box depending on surface 1 Delivery time
488262 AX131-S5-TA-00-L01-S AX131-S5-TA-00-L01-S-MF IP67 (except connector) Mini flat pin plug 180 mm 1 m silicone cable, -50 ... +200 °C -40 ... +500 °C Surface probe, Ø5 mm silver plate, tube angled Ø3 mm ca. 65 g Device in carton box depending on surface 1 Delivery time
488272 AX131-S8-TA-00-L01-S-MF AX131-S8-TA-00-L01-S-MF   Mini flat pin plug 130 mm 1 m silicone cable, -50 ... +200 °C -40 ... +900 °C head and shaft Ø8 mm, ceramic head with measuring spring, tube angled Ø 8 mm   Device in carton box depending on surface 1 Delivery time
486856 AX131-S8-HS-L01-S-MF AX131-S8-HS-00-L01-S-MF   Mini flat pin plug 130 mm 1 m silicone cable, -50 ... +200 °C -40 ... +900 °C head and shaft Ø8 mm, ceramic head with measuring spring, straight Ø 8 mmm ca. 70 g Device in carton box depending on surface 1 Delivery time
