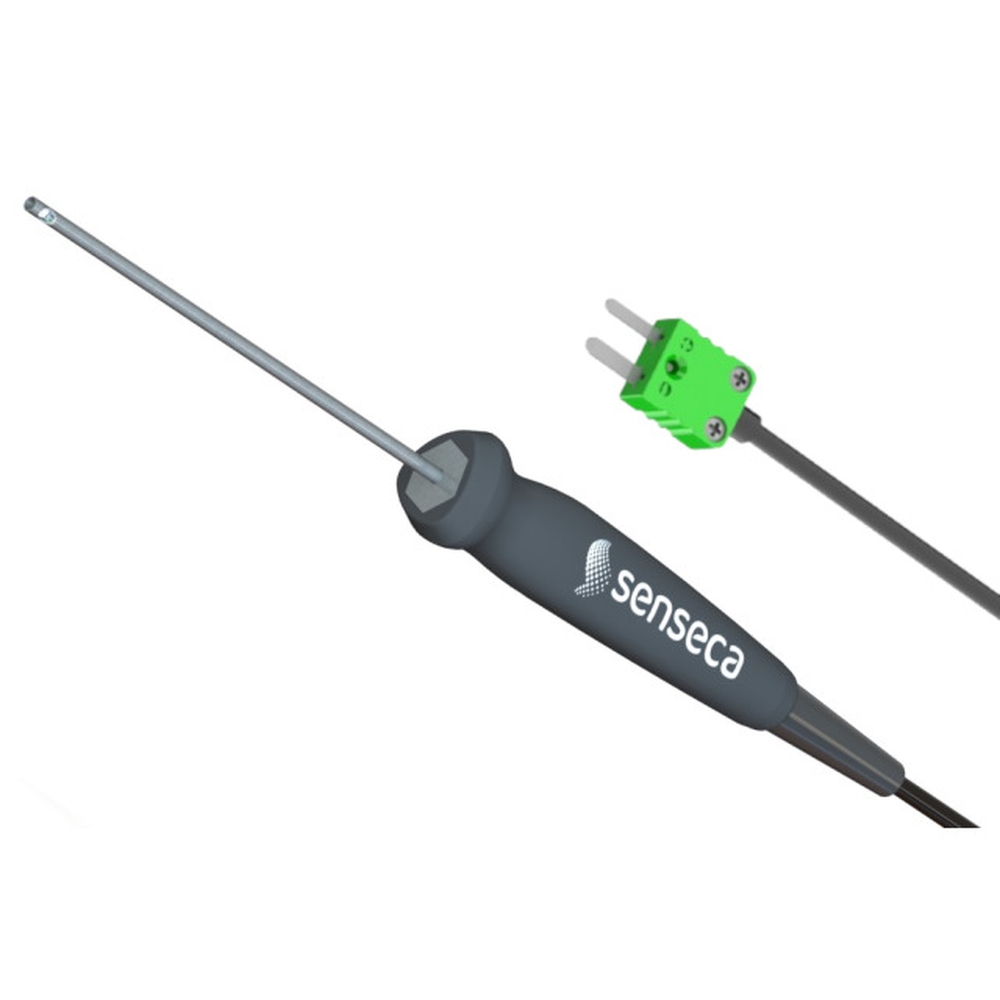

AX 131-G - Type K Gas-probes, large handle

Producer

AX 131 are precision analog type K thermocouple temperature probes.
The probes are designed for use in gases, liquids and soft materials.
Stem material is corrosion and temperature resistant stainless steel, which is suitable for continuous food contact.
The standard 1 meter thermocouple cable is optionally terminated with miniature flat plug or loose ends.
The probe can be optionally supplied with a DAkkS-/Accredia calibration certificates when combined to a suitable display instrument (e.g. PRO 131/ 135).

Connection:
Mini flat pin plug or loose ends
Handle material:
Polyamide (PA6-GF30), gland Santoprene (both up to +120 °C)
Handle length:
130 mm (incl. grommet)


Enquire for more information
please weait… Your data is being loaded...

Article no. Order Code Connection Probe length Cable and length Measuring range Accuracy Version Model Diameter probe tube Weight Probe tube material Scope of delivery Reaction time (T90) minimal quantity Product comparison
488451 AX131-G3-00-CC12-MF AX131-G3-00-CC12-MF Mini flat pin plug 180 mm Coiled cable, stretchable to 1.2 m -40 ... +400 °C Class 1: ±1.5°C or 0.40% across measuring range Type K, class 1, continous Ø3 mm stem Open gas probe Ø3 mm ca. 60 g AISI 316 Device in carton box air 2 m/s approx. 15 s 1 Delivery time
488452 AX131-G3-00-L01-S-MF AX131-G3-00-L01-S-MF Mini flat pin plug 180 mm 1 m silicone cable, -50 ... +200 °C -40 ... +400 °C Class 1: ±1.5°C or 0.40% across measuring range Type K, class 1, continous Ø3 mm stem Open gas probe Ø3 mm ca. 55 g AISI 316 Device in carton box air 2 m/s approx. 15 s 1 Delivery time
