AX 131 - Precision thermocouple probes Type K, large handle

Producer

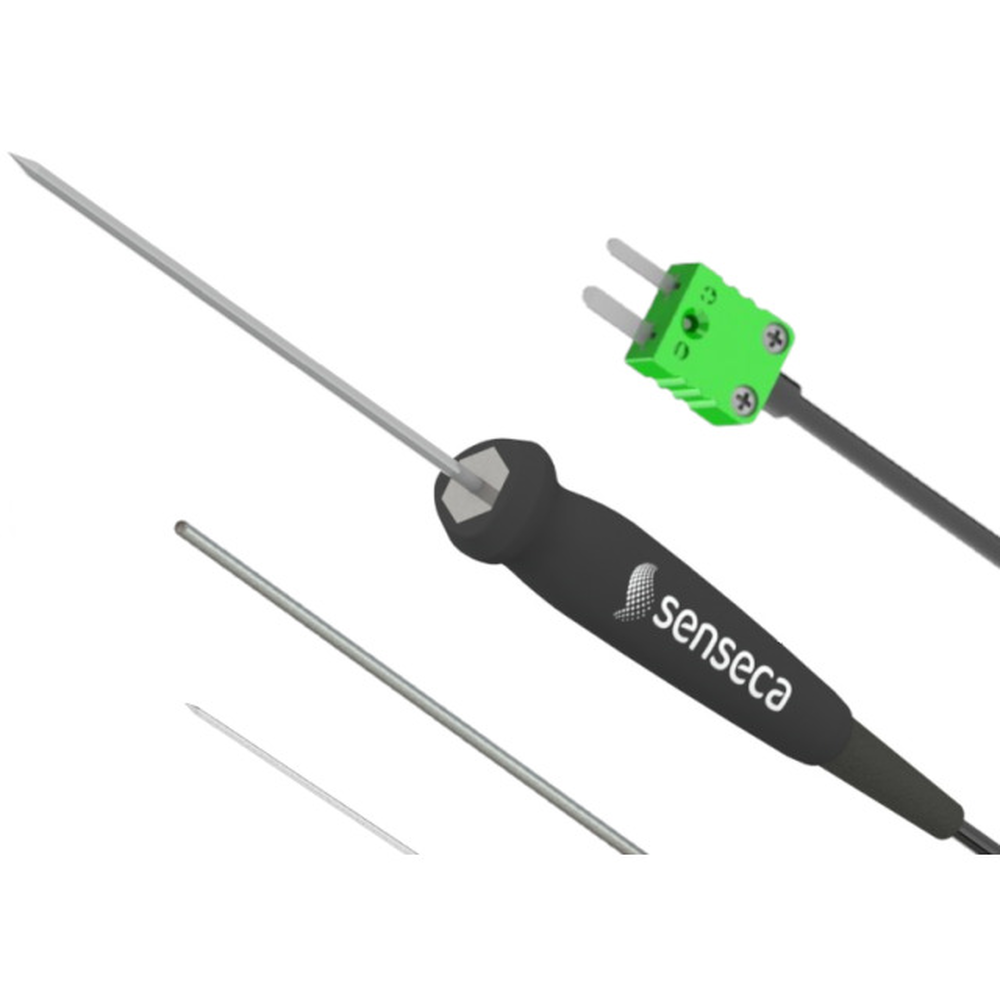

AX 131 are precision analog type K thermocouple temperature probes.
The probes are designed for use in gases, liquids and soft materials.
Stem material is corrosion and temperature resistant stainless steel, which is suitable for continuous food contact.
The standard 1 meter thermocouple cable is optionally terminated with miniature flat plug or loose ends.
The probe can be optionally supplied with a DAkkS-/Accredia calibration certificates when combined to a suitable display instrument (e.g. PRO 131/ 135).

Connection:
Mini flat pin plug or loose ends
Handle material:
Polyamide (PA6-GF30), gland Santoprene (both up to +120 °C)
Handle length:
130 mm (incl. grommet)


Enquire for more information
please weait… Your data is being loaded...

Article no. Order Code Protection class Connection Probe length Cable and length Measuring range Accuracy Version Model Diameter probe tube Weight Probe tube material Scope of delivery Reaction time T90 minimal quantity Product comparison
486731 AX131-D3-130-L01-S-MF AX131-DH3-130-L01-S-MF IP67 (except connector) Mini flat pin plug 130 mm 1 m silicone cable, -50 ... +200 °C -40 ... +550 °C Class 1: ±1.5°C or 0.40% across measuring range Type K, class 1, not potential-free Immersion probe, blunt Ø3 mm ca. 60 g AISI 316 Device in carton box water 0.4 m/s < 2 s, air 2 m/s approx. 40 s 1 Delivery time
486828 AX131-I1.5-130-L01-S-MF AX131-I1.5-130-L01-S-MF IP67 (except connector) Mini flat pin plug 130 mm 1 m silicone cable, -50 ... +200 °C -40 ... +550 °C Class 1: ±1.5°C or 0.40% across measuring range Type K, class 1, not potential-free Insertion probe, needle type Ø1.5 mm ca. 60 g AISI 316 Device in carton box water 0.4 m/s < 1 s, air 2 m/s approx. 12 s 1 Delivery time
486829 AX131-I3-130-L01-S-MF AX131-I3-130-L01-S-MF IP67 (except connector) Mini flat pin plug 130 mm 1 m silicone cable, -50 ... +200 °C -40 ... +550 °C Class 1: ±1.5°C or 0.40% across measuring range Type K, class 1, not potential-free Insertion probe, needle type Ø3 mm ca. 60 g AISI 316 Device in carton box water 0.4 m/s < 2 s, air 2 m/s approx. 40 s 1 Delivery time
486822 AX131-M3-150-L01-S-MF AX131-M1.5-150-L01-S-MF IP67 (except connector) Mini flat pin plug 150 mm 1 m silicone cable, -50 ... +200 °C -200 ... +1150 °C Class 1: ±1.5°C or 0.40% across -40…550°C Type K, class 1, mineral insulated Insertion probe, robust Ø1.5 mm ca. 60 g Inconel 600 Device in carton box water 0.4 m/s < 5 s, air 2 m/s approx. 60 s 1 Delivery time
487743 AX131-I3-130-CC12-MF AX131-I3-130-CC12-MF IP67 (except connector) Mini flat pin plug 130 mm Coiled cable, stretchable to 1.2 m -40 ... +550 °C Class 1: ±1.5°C or 0.40% across measuring range Type K, class 1, not potential-free Insertion probe, robust Ø3 mm ca. 65 g AISI 316 Device in carton box water 0.4 m/s < 2 s, air 2 m/s approx. 40 s 1 Delivery time
488276 AX131-D1.5-130-L01-S-MF AX131-D1.5-130-L01-S-MF IP67 (except connector) Mini flat pin plug 130 mm 1 m silicone cable, -50 ... +200 °C -40 ... +550 °C Class 1: ±1.5°C or 0.40% across measuring range Type K, class 1, not potential-free Immersion probe, blunt Ø1.5 mm ca. 60 g AISI 316 Device in carton box water 0.4 m/s < 1 s, air 2 m/s approx. 12 s 1 Delivery time
488286 AX131-DH3-200-CC12-MF AX131-DH3-200-CC12-MF IP67 (except connector) Mini flat pin plug 200 mm Coiled cable, stretchable to 1.2 m -40 ... +800 °C Class 1: ±1.5°C or 0.40% across -40…550°C Type K, class 1, high temperature, not potential-free Immersion probe, high temperature Ø3 mm ca. 70 g AISI 316 Device in carton box water 0.4 m/s < 2 s, air 2 m/s approx. 40 s 1 Delivery time
488282 AX131-DH3-300-CC12-MF AX131-DH3-300-CC12-MF IP67 (except connector) Mini flat pin plug 300 mm Coiled cable, stretchable to 1.2 m -40 ... +800 °C Class 1: ±1.5°C or 0.40% across -40…550°C Type K, class 1, high temperature, not potential-free Immersion probe, high temperature Ø3 mm ca. 75 g AISI 316 Device in carton box water 0.4 m/s < 2 s, air 2 m/s approx. 40 s 1 Delivery time
488281 AX131-DH3-500-CC12-MF AX131-DH3-500-CC12-MF IP67 (except connector) Mini flat pin plug 500 mm Coiled cable, stretchable to 1.2 m -40 ... +800 °C Class 1: ±1.5°C or 0.40% across -40…550°C Type K, class 1, high temperature, not potential-free Immersion probe, high temperature Ø3 mm ca. 85 g AISI 316 Device in carton box water 0.4 m/s < 2 s, air 2 m/s approx. 40 s 1 Delivery time
488277 AX131-IH3-130-L01-S-MF AX131-IH3-130-L01-S-MF IP67 (except connector) Mini flat pin plug 130 mm 1 m silicone cable, -50 ... +200 °C -40 ... +800 °C Class 1: ±1.5°C or 0.40% across -40…550°C Type K, class 1, high temperature, not potential-free Insertion probe, high temperature Ø3 mm ca. 60 g AISI 316 Device in carton box water 0.4 m/s < 2 s, air 2 m/s approx. 40 s 1 Delivery time
488284 AX131-M1.5-200-CC12-MF AX131-M1.5-200-CC12-MF IP67 (except connector) Mini flat pin plug 200 mm Coiled cable, stretchable to 1.2 m -200 ... +1150 °C Class 1: ±1.5°C or 0.40% across -40…550°C Type K, class 1, mineral insulated, not potential free Immersion probe, blunt Ø1.5 mm ca. 70 g Inconel 600 Device in carton box water 0.4 m/s < 1 s, air 2 m/s approx. 12 s 1 Delivery time
488275 AX131-M3-300-L01-S-MF AX131-M3-300-L01-S-MF IP67 (except connector) Mini flat pin plug 300 mm 1 m silicone cable, -50 ... +200 °C -200 ... +1150 °C Class 1: ±1.5°C or 0.40% across -40…550°C Type K, class 1, mineral insulated Immersion probe, blunt Ø3 mm ca. 70 g Inconel 600 Device in carton box water 0.4 m/s < 5 s, air 2 m/s approx. 60 s 1 Delivery time
